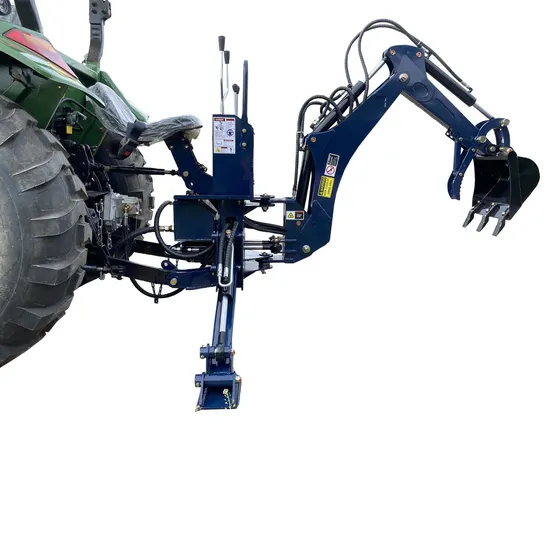

Backhoe 40HP-80 HP Agricultural Machinery Front End Loader, Multifunction Backhoe

Product Description

This backhoe is a field construction machine that is used to scoop up loose soil and stones from the ground and load them onto a designated truck or trailer. It can also be used for the transportation of bulk materials such as fertilizer, grain and feed during the sowing period. The front wheel loader has the advantages of simple structure, convenient operation and good vision.
Product Parameter

Model		GH-6					GH-7
Specification		Inch		Metric			Inch		Metric
Tractor HP		25-30HP					30-45HP
3-point Linkage		Cat-1					Cat-1
Structure Weight		1060lb		480kg			1100lb		500kg
A	Digging Depth(two foot flat bottom)	5.74'		1750mm			6.4'		1950mm
B	Reach from center line of Swing pivot	8.53'		2600mm			9.51'		2900mm
C	Loading Height(bucket at 60°)	5.64'		1720mm			6.03'		1840mm
D	Transport Height(maximum)	6.03'		1840mm			6.75'		2060mm
E	Extend Height	9.41'		2870mm			10.2'		3110mm
F	Loading Reach(bucket at 60°)	3.11'		950mm			3.87'		1180mm
G	Transport Overhang	3.54'		1080mm			3.64'		1110mm
H	Undercut	2.4'		730mm			2.72'		830mm
I	Bucket Rotation	180°					180°
J	Stabilizer Spread(up position)	4.3'		1310mm			4.3'		1310mm
K	Stabilizer Spread(down position)	4.3'		2100mm			6.9'		2100mm
L	Swing Arc	180°					180°
M	Bucket width	300mm					400mm
N	Bucket cubage	0.036					0.045
Model			GH-8			GH-9
Specification			Inch		Metric	Inch		Metric
Tractor HP			45-60HP			60-80HP
3-point Linkage			CAT-1&2			Cat-1&2
Structure Weight			1280lb		580kg	1370lb		620kg
A	Digging Depth(two foot flat bottom)		7.38'		2250mm	8.36'		2550mm
B	Reach from center line of Swing pivot		10.5'		3200mm	11.8'		3600mm
C	Loading Height(bucket at 60°)		3.66'		1930mm	7.25'		2210mm
D	Transport Height(maximum)		6.98'		2130mm	8.13'		2480mm
E	Extend Height		10.62'		3240mm	11.77'		3590mm
F	Loading Reach(bucket at 60°)		3.74'		1140mm	4.46'		1360mm
G	Transport Overhang		4'		1220mm	4.16'		1270mm
H	Undercut		1.54'		470mm	1.7'		520mm
I	Bucket Rotation		180°			180°
J	Stabilizer Spread(up position)		4.3'		1310mm	4.3'		1310mm
K	Stabilizer Spread(down position)		7.67'		2340m	7.67'		2340mm
L	Swing Arc		180°			180°
M	Bucket width		450mm			500mm
L	Bucket cubage		0.052			0.063

Packing&Shipping
Factory inspection
Weifang Guihua Agricultural Equipment Co., Ltd. is located in Weifang City, Shandong Province. It is a private enterprise group specializing in the design, production and sales of agricultural machinery. Its main products include tractors ranging from 25 hp to 260 hp, and micro farm tools ranging from 12 hp to 25 hp. The products are sold to more than 20 countries. The company's products enter the domestic and foreign markets with high-tech content, well-known memory, performance docking, and value-added services. High-quality products and satisfactory service. All employees of our company wholeheartedly welcome customers to come to cooperate.
After-sales service
Free Technical Advisory Services
Give suggestion for fitful goods
Invite customer come
Let you know all satuation about goods produce ,packing
Supply test report and sample test
Suppy support by vedio , Email , phone
Free easy broken parts
Dispatch technicians for on-site teaching and maintenance
We are at your service 24 hours a day.
FAQ
Q1. Can the logo and color of the product be customized?
A1. Yes, it can be customized according to your needs, we welcome your sample customization.
Q2. What are the advantages of our company?
A2. Our company has a professional technical team and a professional production line to ensure the quality and delivery time of the product, provide good packaging to avoid damage during transportation, and deliver the goods to you in a timely and complete manner.
Q3. How to control the quality of products?
A3. We have always attached great importance to the control of product quality, consistently providing high-quality products, and implementing strict factory inspection procedures for each tractor to ensure the quality of each product.
Q4. How long can I receive the goods after placing the order?
A4. The delivery time is generally one month, and the specific time is adjusted according to the order quantity.
