Kd 7.5/11kw 5 Axis CNC Milling Machine

Kd 7.5/11kw 5 Axis CNC Milling Machine

US$37,565.00 1 Set (MOQ)

Basic Info.

Model NO.
KDVM800LA
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
X Travel
800mm
Y Travel
530mm
Z Travel
530mm
Table Size
930 X 510mm
Spindle
Bt40
Spindle Speed
8000rpm
Main Motor
7.5/11kw
Atc
24 Tools Capacity
Travel Speed
24m/Min
Motor Torque
11/11/11nm
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
84571010
Production Capacity
523

Product Description


PRODUCT SPECIFICATIONS
MODELS
DM852
DM1052
TRAVEL


X axis
800mm
1000mm
Y axis
520mm
Z axis
520mm
Spindle center to column
550mm
Spindle end to table
150-670mm

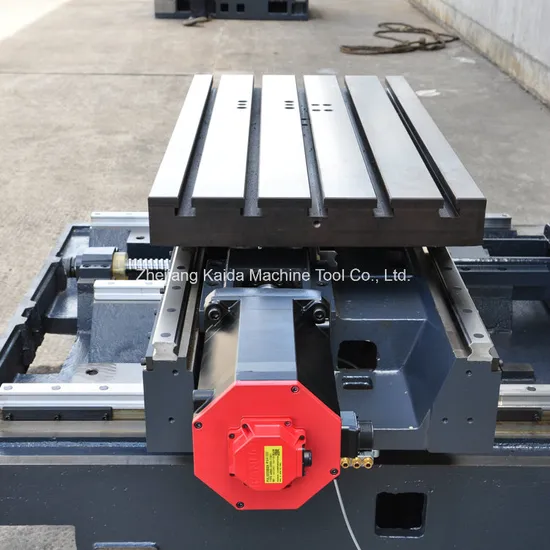

TABLE


Table size
950×510mm
1130×510mm
T-slot(width×number×space)
18mm×5×100mm
Max. table loading
800kg
SPINDLE


Taper bore of spindle
BT40
Spindle power
11/15kw (FANUC)
Spindle speed
8000rpm
FEED


X/Y/Z fast feed
30/ 30/ 30m/min
Motor power/torque of X/Y/Z
3/3/3 kw (20Nm)
Guide ways number of X/Y/Z
3/3/2 (ball type)
Linear guide width of X/Y/Z
35/35/35mm
Diameter and screw pitch of X/Y/Z lead screw
Ф40x12mm (C3 level)
Bearing number of X/Y/Z lead screw
7/7/7
ATC


Tool number
24
Max. tool length
300mm
Max. tool weight
8kg
Time (tool-tool)
2s
ACCURACY


Positioning
≤0.006mm
Repeatability(X/Y/Z)(ISO)
≤0.004mm
OTHERS


Pneumatic boosting cylinder
3.5T
Power of coolant pump
550w
Capacity of lubrication pump
2L
Capacity of coolant tank
200L
Min. Input
0.001mm
Overall dimension (L x W x H)
3750x2300x2700mm
4300x2300x2700mm
Net weight
5150kg
5480kg
