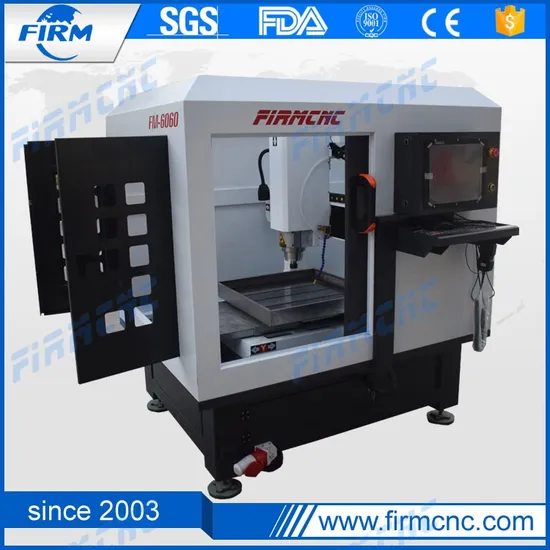

FM6060 Engraving CNC Milling Machine for Metal Aluminum

Product Description

FM6060 cnc milling machine for metal Main features of mould cnc enrgaving machine
1.Iron cast body with high accuracy.
2.XYZ driver system is servo motor and driver, the best driver system in the world.
3.XYZ use Hiwin ball screw and linear square rails, repeatability positioning accuracy is 0.01mm.
4.Gantry fixed and table moving design, make machine faster and more precise.
5.High speed and anti-shake spindle, make produce fine more detail.
6.Automatic oil feeding system make the machine keep precise and long life
7.Professional engineer assembling machine, guarantee machine quality.
8.The professional team provide better solution for you.
Application of mould cnc enrgaving machine
1.It is suitable for engraving,milling and drilling compactly all sorts of materials such as steel,copper,aluminum and plastics.
2.Widely apply to automotive,injection mould,ironware mould and engrave mould industries.
3.Especially designed for engraving and milling molds,eyeglasses, watch,panel,badge,brand,
graphics and words of three-dimensional and outside surface's sleeking of large size.
Samples of mould cnc enrgaving machine
Technical specification of mould cnc enrgaving machine

Travelling size	X working area	600mm
	Y working area	600mm
	Z working area	200mm
Accurancy	Working Accurancy	±0.01mm
	Repositioning Resolution	±0.01 mm
Table	Surface	stainless steel T-slot table
Guide rail			Taiwan HIWIN square guide rail 25
Transmission	X/Y/Z Axis	Taiwan TBI ball screw
Structure	Lathe Structure	Integral cast iron
Speed	Rapid Travel Rate	15000mm/min
	Working Speed	10000mm/min
Spindle	Spindle Power	2.2KW/3KW
	Spindle Speed	0-24000rpm
	Inverter	Fuling inverter
Working	Drive motor	Stepper motor /JAPAN YASKAWA Servo motor
	Command Language	G code(optional:HPGL)
Others	Working Voltage	AC220/50HZ
	Operating System	Original NC studio
	Compatible Software	Type3(optional:Artcam,Ucan)
Weight	Gross weight	1800kg
	Net weight	1500kg
package	1. Protective film package and fumigation-free plywood case. 2. OEM and package can according to customer requirements.

Main configuration of mould cnc enrgaving machine
Equipped with constant water cooled spindle, high speed step motor, strong stainless steel T-slot table etc
Company Information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on cnc router appliances.
After sale services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
Hot sale products
Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information
FAQ
1.Can you recommend a mould cnc router to me ?
Yes, In order to give you a suitable mould cnc milling machine ,pls tell me the max working area, materials for processing and the thickness.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
