Factory Price Circulating Horizontal Split Pumps Oil Multistage Centrifugal Chemical Process Pump

Product Description

demonstration of the type	range of application	performance parameter
HZX-800 HZX(FJX): Series code 800: Nominal diameter of the impeller	For new energy, MVR device, ammonium phosphate, phosphoric acid, vacuum salt, Forced circulation of evaporators in alumina, caustic soda and other chemical industries, It can also be used as a circulating pump for crystallization and reactor. Can also be used in chemical, petrochemical, oil refinery, power plant, paper,Pulp and alkali, urban water supply and other industries. Suitable for conveying normal temperature or medium temperature neutral or corrosive, clean or containing particles of media.	Flow rate: ~50000m³/h Head: ~8m Speed: 380~980r/min Design pressure: ~ 1.6MPa Operating temperature: -20ºC~150ºC

1. Pump body 2. Impeller hub 3. Impeller blade
4. Protective sleeve 5. Shafting 6. Shaft seal
7. Non-drive end bearing 8. Bearing box
9. Oil pan 10. Drive end bearing

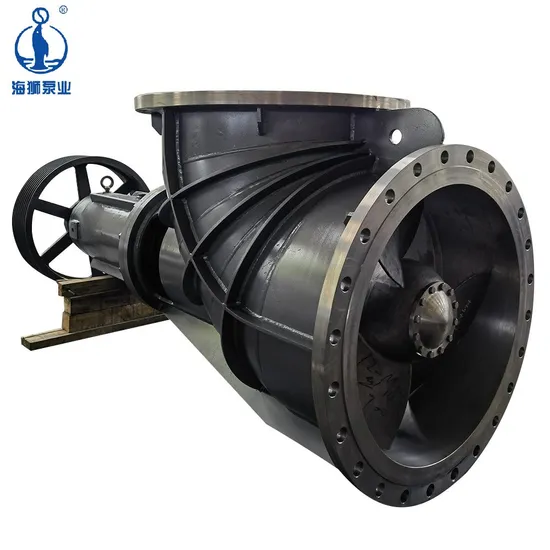

HZX/FJX type pump is horizontal, radial split, cantilever type axial flow pump. According to GB/T13008 "mixed flow pump, axial flow pump technical conditions" design and manufacture.
HZX is a suspended evaporative circulation pump that is suspended from the evaporator and moves up and down with the thermal expansion and contraction of the evaporator, eliminating the expensive expansion joints on the evaporator to operate reliably. Pump body adopts plate welding structure, polished, low resistance.
FJX is a foot supported circulating pump. This series of pumps has the characteristics of safe and reliable structure, stable operation and convenient maintenance. Stable hydraulic performance, high efficiency, wide range of use, is a high-efficiency energy-saving products.
Company profile We offer integrated solutions from embryo casting to complete machine with short lead time and controlled quality.
Main product
workshop

exhibition

Certification certificate
Cooperative brand
APPLICATION AREA
Coal chemical Industry,petroleum and petrochemical Industry,natural gas chemical Industry,fine chemical Industry,etc
Chemical fiber, desulfurization and denitration, etc
Thermal powerthermal power generation,biomass power generation,etc
Mining development,nonferrous metal smelting,Iron and steel metallurgyetc
Environmental protection,wastewater treatment,evaporation and concentration,MVR,etc
Ocean engineering,etc.
New energy, lithlum battery Industry, etc
PACKAGING & TRANSPORTATION
WHY CHOOSE US?
5 DECADES
Established in 1977, long history of pump making brings us rich experience, making us a professional pump manufaturer and ranking us as a famous pump factory in China.
500+ STAFFS
Well trained and professional engineers and workers guarantees the in time delivery and offers professional pump solutions to our clients.
100000m2 WORKSHOPS
Large and modernized workshops and facilities enables the efficient and strict QA&QC procedures and therefore assures the qualified products.
20+ BRANCHES
Established 20+ branches offices and subsidiaries throughout China, they offer closer and in time services to our clients. And our overseas customers are from different places of the world.
3000+ CLIENTS
Own more than 3000 clients both in China and overseas, which is an approval of our product quality and a praise of our service.
20+ PATENTS
Gained more than 20 patents, which is a strong proof of the ability of R&D and a backup of product quality.
FAQ
Q: How long is your factory history?
A: Our factory was established in 1977.
Q: How many staffs does your factory have?
A: We have around 500 staffs.
Q: What international certificates does your factory have?
A: We have API, CE, ISO9001...
Q: Does your factory have foundry for yourself?
A: We have our own foundry in our factory.
Q: What after sales service your factory can provide?
A: Generally, most of the issues can be solved by free guidance of video calls. But paid site service is also available.
Q: What is your product warranty?
A: 12 months since commissioning or 18 months after shipment,whichever is earlier.
Q: What is your factory's annual output capacity?
A: Around 20,000 pcs of various type of pumps.......
