Low Price Plastic Multi Jet Dry Dial Cold Water Meter DN20
| US$4.80-6.00 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
LXSG-20EP
Install
Horizontal
Medium Temperature
Cold Water
Level Measurement
B
Counter Instructions
Mechanical
Nominal Diameter
15-20mm
Application
Civil
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Stucture
Traditional
Material
ABS
Water Temperature
Cold Water
Standard
ISO 4064 Class B
Color
Blue or Black
Transport Package
White Box + Carton
Specification
20mm
Trademark
Yongzhou
Origin
Ningbo
HS Code
9028201000
Production Capacity
50000PCS/Month
Product Description

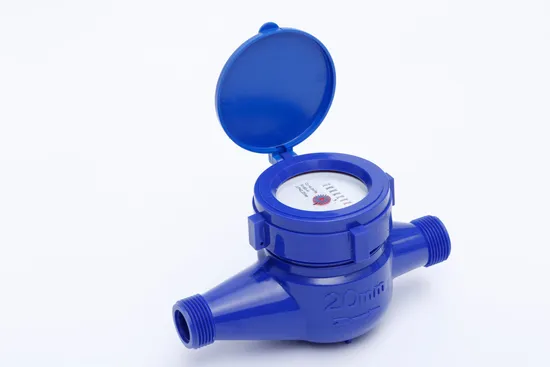

Multi-jet Dry-dial Type Cold Water Meter LXSG-20EP
Multi-jet ,Rotary vane wheel type
Dry-dial, Magnetic drive ,Resistance to exterior magnet interference
Material: ABS plastic
Good looking
Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
Measuring accuracy conform to ISO4064 Class B standard
Installation requirements:
Meter should be installed in horizontal position with the register face upwards
Pipe line must be flushed before installation
The meter should be constantly full of water during operation
Main Technical data
| Meter Size DN (mm) | Class | Qs Overload Flow | Qp Nominal Flow | Qt Transitional Flow | Qmin Min Flow | Starting Flow | Min Reading | Max Reading | |||
| m³/h | L/h | m³ | |||||||||
| 15 | B | 3 | 1.5 | 120 | 30 | 14 | 0.0001 | 99999 | |||
| 20 | B | 5 | 2.5 | 200 | 50 | 16 | 0.0001 | 99999 | |||
Maximum permissible error:
In the lower zone from Qmin inclusive up to but excluding Qt is ±5%
In the upper zone from Qt inclusive up to and including Qs is ±2%
Working Condition:
Water temperature:0ºC≤t≤50ºC (For cold water meter)
Water pressure: ≤10bar (16bar on request)
Competitive Advantage:
Low price
Stable quality
Long time guarantee
100% tested
On time delivery
