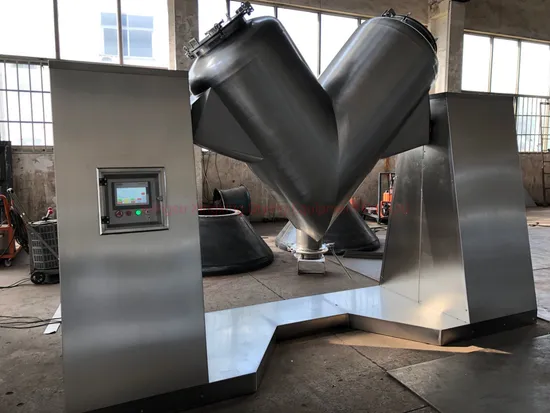

V Blender for Mixing Powder & Granules Type Material

Product Description

Description
V Blender equipment is very useful in the pharmaceutical and food manufacturing industries. It consists of two asymmetric barrels where the materials can move both longitudinally and transversely so that the mixing evenness can be higher. It offers a short blending time and highly efficient in operation. The machine is made up to 2 hollow cylindrical containers joined together at an angle of 75 to 90 degrees. As the V blender tumbles the material is continuously separated and recombined, and thorough mixing occurs as it falls randomly in the vessel. The repeated converging and diverging motion enhances the frictional contact between the material and the vessel giving a gentle and homogenous blend.
Salient Features Suitable for dry mixing of products in powder form. Easy for loading and unloading. Easy for cleaning. All contact parts are made out of SS304/SS316 or SS316 L quality material, as per customer requirement. Simple design requires minimum maintenance. General structure & safety guards made out of mild steel & colored in Standard Model and made out of SS304 & polished to the matt finish in GMP Model The 'V' shape gives sufficient continuous movement to the granules, result in good quality. Maximum care has been taken to ensure safe operation of the unit. Other Option Available with V Blender Machine Vacuum Loading facility for material charging Flame proof drive motor along with flame proof starter Contact parts made out of SS316 or SS316 L instead of SS304. The 'V' BLENDER is an efficient and versatile blending machine for mixing and lubrication process of dry powders homogeneously. Approximate two third of the volume of the Blenders filled to ensure proper mixing. The 'V' Blender gives best result for powders due to suitable medium speed and 'V' shape of container. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc.
In V Blender machine the powders comes from all sides due to the 'V' shape of the product container, hence requirement of RPM is medium. Suitable mainly for powder & granules type material. This type of material gets sufficient continuous movement. Due to the 'V' shape of container, even medium movement will result in good quality of blending/lubrication of granules.
Technical Parameter

Model	Total volume L	Material capcity L	Working capacity kg	Rotating speed rpm	Power kw	Weight kg
HV-50	50	25	15	25	0.55	500
HV-150	150	75	45	20	0.75	650
HV-300	300	150	90	20	1.1	820
HV-500	500	250	150	18	1.5	1250
HV-1000	1000	500	300	15	3	1800
HV-1500	1500	750	450	12	4	2100
HV-2000	2000	1000	600	12	5.5	2450
HV-3000	3000	1500	900	9	5.5	2980
HV-4000	4000	2000	1200	9	7.5	3300
HV-5000	5000	2500	1500	8	7.5	3880
HV-6000	6000	3000	1800	8	11	4550
HV-8000	8000	4000	2400	6	15	5200
HV-10000	10000	5000	3000	6	18.5	6000

Company Show
Company introduction: Jiangsu Xingxing Drying Equipment Co., Ltd.
Jiangsu Xingxing Drying Equipment Co.,Ltd has established in 1998 and it covers an area of 15000 square meters, possesses fixed asset of USD 7 millions. The products have exported to US, Singapore, India, Ukraine, Russia, Korea and so on. The company have advanced production equipment , excellent technical team and after-sales service.
CERTIFICATE
Package:wooden case
Service:
pre-sale service
We Invite customers to visit our company and communicate on technical requirements face to face.
sale service
Responsible for debugging the equipment according to customers' requirements of various technical data. Our engineers will train our customers about equipment features and operation key points to make sure the equipment running in the best condition.
after-sale service
We provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every year to know more customer needs,like customer operation problems in the process of production equipment.
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment. Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.
Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement.
We look forward to cooperating with partners from all over the world to build win-win cooperation relationship in long term. Welcome for your visiting.
Previous Exhibition
FAQ:
1. Q: Please describe your warranty period.
A: 15 months after the equipment is arrived at the destination port or 12 months after the installation and commissioning of the equipment, whichever comes first.
2. Q: Do you provide on-site installation and commissioning?
A: Yes, we do. If on request, we'll provide the guidance of on-site installation and commissioning. Usually one mechanical engineer and one electrical engineer to assist.
3. Q: How about the cost of on-site installation and commissioning guidance?
A: The cost consists of round-trip air tickets, room and board expenses, service cost (labor cost), and site transportation (or directly provided by client), which shall be paid additionally.
4. Q: Are you a factory or a trading company?
A: We are a professional manufacturer. We have own factory and pilot plant for customers to do sample testing.
