Biobase China Auto Chemistry Analyzer for Lab with 200 Tests/Hour Bk-200

Product Description

Product Description

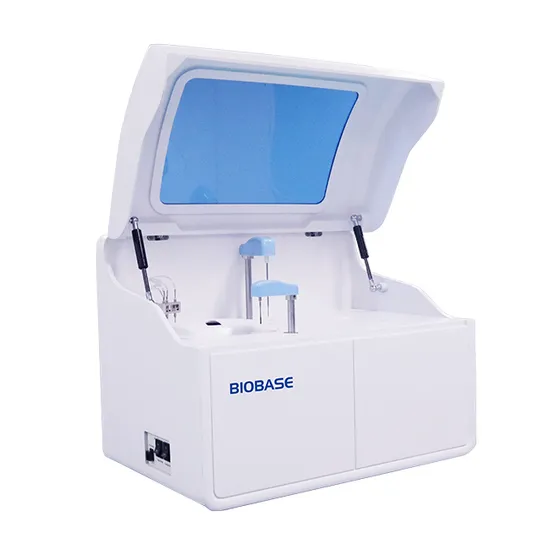

BIOBASE Chemistry Analyzer BK-200
Features:
. 37 Sample positions.
. 28 Reagent positions.
. 48 Reaction cuvettes.
. 200 Tests per hour.
. Probe anti-collision function,liquid level dectection function.
Product Parameters
Technical Parameter:

Model		BK-200
Overall Performance	Throughput	200 Tests/hour
	Analysis Method	End-point, Fixed-time, Rate(Kinetic)
Sample & Reagent System	Sample Positions	37 sample positions
	Reagent Position	28 reagent positions
	Sample Volume	2-70µl
	Reagent Volume	20-350µl
	Probe	coating, with anti-collision function, liquid level detection function
	Probe Washing	Automatic washing interior and exterior
	Reagent Cooling	Refrigerated tray with independent switch
Reaction System	Temperature Control	37+0.2ºC, real-time monitoring
	Cuvettes	48 reusable cuvettes,optical length 6mm
	Mixer Probe	Independent stirring
	Washing	Automatic cuvettes washing
	STAT function	YES
Optical System	Light Source	6V/10W halogen lamp
	Spectrophotometry	Post-spectral spectrophotometry
	Wavelength	340,405,450,480,505,546,570,600,,630,700,750,800nm
	Absorbance	0-3.0Abs
Calibration & QC	Calibration	Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P
	Quality Control	Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D)
Data Management	Software	Windows 7/8/10 , 32or 64bit
	LIS System	Bi-direction,support HL7 protocol
	Interface	LAN port access
	Printer	External,multiple reporting mode available
Working Conditions	Power Supply	AC220V±10%,50/60Hz, 110V±10%,60Hz, 300W
	Temperature	15~30ºC
	Water Consumption	Deionized water:<5L/H
	Humidity	40-85%
Size & Weight	External Size (W*D*H)	625*425*460mm
	Net Weight	36kg
	Package Size (W*D*H)	728*530*884mm
	Gross Weight	55kg
