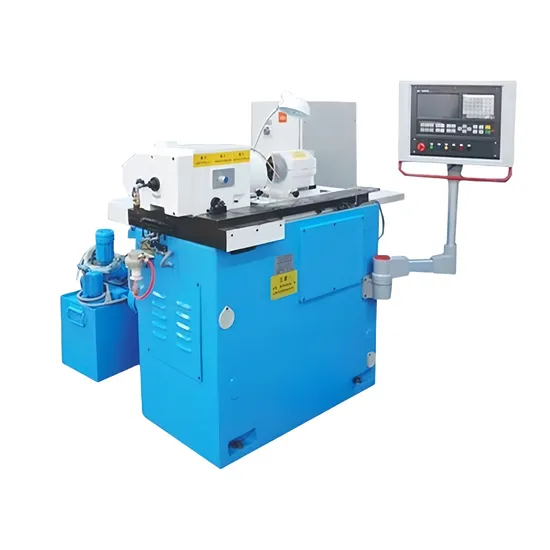

Factory Wholesale CNC Internal Grinding Machine for Cured and Face Grinder Mk215D
| US$18,500.00-27,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MK215D
Type
Internal Grinding Machine
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Internal Grinding Machine
Precision
High Precision
Certification
ISO 9001
Condition
New
Grinding Inner Diameter
3-50mm
Grinding Depth
80mm
Max. Work Depth
220mm
Grinding Wheel Speed
24000rpm/60000rpm
Workpiece Speed
280/400/500/800rpm
Machine Size
L1800*W1450*H1700mm
Machine Name
CNC Horizontal Internal Grinding Machine
Transport Package
Ship/Train
Specification
2000kg
Trademark
SNALPO
Origin
China
HS Code
8460291200
Production Capacity
1000pieces/Year
Product Description
Product DescriptionCNC internal grinding machine MK215D advantage
1. MK215D is a two axis cnc machine without fully enclosed cover. This model has an independent electrical box layout. The machine tool guide adopts a double V-shaped pre loaded, high-precision cross roller guide with high precision and good rigidity.
2. The machine tool adopts a high-speed and high-power electric grinding wheel shaft, powered by a static frequency converter, with low energy consumption and low noise. The feed mechanism adopts a servo motor to control the ball screw for feed and adjustment compensation. The electrical control system adopts Mitsubishi products from Japan.
3.The grinding parameters of the machine tool can be inputted and outputted through the touch screen, enabling human-machine dialogue and simple and convenient operation. The feed controlled by the machine tool servo system has the characteristics of high accuracy, small error, and fast speed.
Product Parameters
| CNC Grinder Accuracy | |
| Bore roundness | 0.002mm |
| Bore cylindricity | 0.003mm |
| Surface roughness of bore | Ra0.4um |
| Size dispersion of bore | 0.01mm |
| CNC Internal Grinding Machine MK215CD main technical parameters | |||
| Grinding Inner Diameter | Φ3-Φ50 | mm | |
| Grinding Depth | 80 | mm | |
| Max. Workpiece Diameter | 220 | mm | |
| Workbench | Travel | 500 | mm |
| Fast moving speed | 10 | m/min | |
| Min. feed | 0.001 | mm | |
| Grinding Wheel Speed | 24000/60000 | rpm | |
| Workpiece Speed | 280/400/500/800 | rpm | |
| Workpiece Power | 0.45/0.75 | kw | |
| Power | 8 | kw | |
| Weight | 2000 | kg | |
| Size | L1800*W1450*H1700 | mm | |
Detailed Photos
Work Piece
