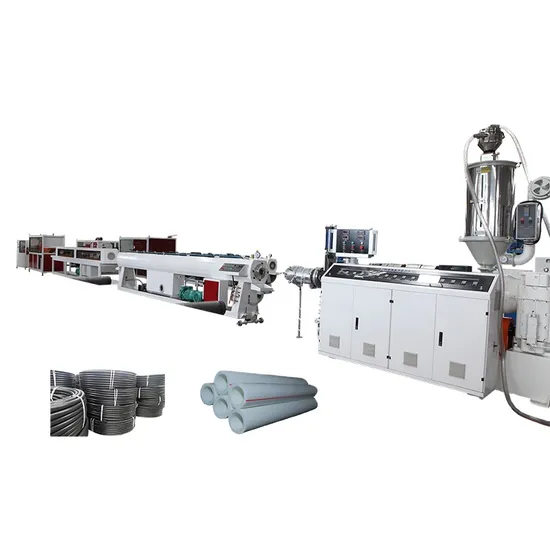

High Efficient 110/400mm Plastic PE Tube Pipe Making Machine Single Screw Extruder HDPE Pipe Production Line

Product Description

Product Description

pipe diameter	screw diameter	L/D ratio	rotational speed of screw	dimensions	power	weight	output
16/110	65mm	33:1	120	29*2*2.2	75kw	5600kgs	150/220kgs/h
110/250	75mm	33:1	120	38*2.5*2.8	110kw	9800kgs	220-320kgs/h
110/400	90mm	33:1	120	45*3*2.8	185kw	15600kgs	400-550kgs/h
280/630	120mm	33:1	100	55*3.5*3.5	280kw	22800kgs	850-1200kgs/h
720/1200	120mm	33:1	100	68*8*3.8	280kw*2	65000kgs	1200-2400kgs/h

Characteristics and applications: PE series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cable, etc. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer foam pipe, etc., it can also produce PP, PE, ABS, PPR, PEX, silicon core pipe and pipe material of other material. The planetary cutting machine is fully automatic computer digital control, it has such advantages of sample operation, reliable property, etc. It has reached world advanced level.
Company Profile
Our company
Zhangjiagang Beierman Machinery CO.,LTD.is a modern factory, which engaged in the plastic extrusion machine and recycling machines' researching, manufacturing and saling. Our professional research teams, sales teams, rich experience and processing equipment will offer customers high quality machines and perfect after sales services.
Our major products including: single screw extruder, twin screw extruder, HDPE pipe production line, PP-R pipe production line, PVC pipe production line, plastic profile production line, plastic sheet production line, plastic mixing machine, waste plastic recycling machines, plastic pelletizing machines and relative auxiliary machines for the plastic machines. We will offer the customers the whole set of solution from extrusion to recycling and turn key projects. Our machines are highly praised by our customers for perfect perfomance, quick service, advantage technology.
Customer's satisfied is our target forever. We will offer detail solutions according to different customers detail conditions. Customers' expected products, services is what we are always insisting. High quality, Quick services, mutually beneficial will our promise to customers around the world.
After Sales Service
There will be two kinds of after sales services we can offer to customers:
1-workers training and running test the machines;
2-machines repairing.
We will offer the customers sales services in time once we get the after sales services request. We have a services team for customers around the world, all of them has the rich experience and small problems can be solved after purchaser's calling. If the problems can not be solved after purchaser's calling, our services team will be ready to leave for the buyer's once getting the visa right away.
