Safety Beam (Double)

Product Description

Description

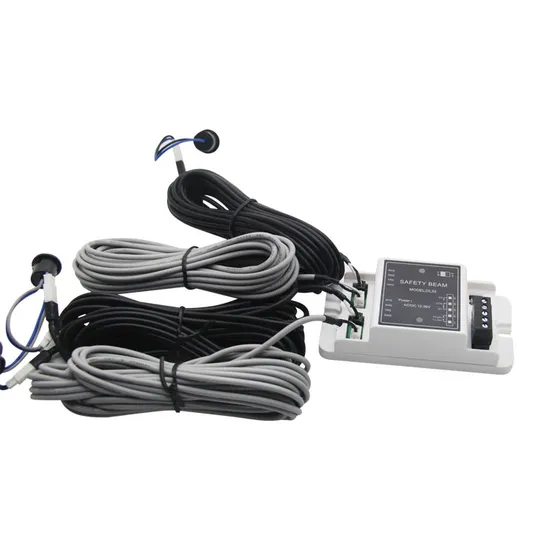

Infra-red beam is suitable for automatic door, it provides safety protection to people pass through. The safe beam can be installed at all kinds of door frames because of its small size. In addition, microprocessor operating system redefines the safety standards to protect pedestrians, and develops a new smarter and higher performance range.
Technical Data
Technical: infra-red, microprocessor Installation height: Min 0.2m above floor Distance between beams: Min. 0.2m(reverse beam) Distance to door face: 2 cm Min. range: 1 m Max. range: 5m( installed at height of 0.2m) avertence angle: 8 ° Detection mode: cut off beam Reaction time: Relay output: ≤ 40ms Hold time: Relay output: 300ms Power voltage: 12-24V AC±10% 12-24V DC±10% Power consumption: <1 W Signal display: each beam has a light on the controller box Adjustment:( turn DIP switch) 1 single/double beam Environment temperature: -20ºC~+55ºC Wire length: 5m single beam double beam choose installation height make a height mark beam is above floor at least 20cm choose installation height 1 & 2 distance between h1 & h2 at least 30cm make marks h1 & h2 beam is above floor at least 20cm drill a vertical hole 13mm(or 1/2") on each side of the frame drill two vertical holes 13mm(or 1/2") on each side of the frame Detector wire colors receiver: white/black sender: white/black Wire colors receiver: black sender: gray
