High Speed Plastic Mixer Unit Internal Mixing Machine

Product Description

Quick Details
Condition: New
Mixer Type: Paddle
Product Type: Plastic
Application: Granules & powder
Additional Capabilities: Drying
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Lanhang
Model Number: SRL-Z300/600A
Max. Loading Capacity: 225/360
Voltage: 380 V
Power(W): 40000/55000/11000
Dimension(L*W*H): 4580x2240x2500 mm
Certification: CE, SGS, lAF, CNAS
Warranty: 1 year
After-sales Service Provided: Overseas service center available
Mixer Machine Name: High Speed Mixer
Heating Method: Electric / Friction
Cooling System: Water / Oil
Paddle Shape: Disk, Cross, Linear
Component: Heat Mixer & Cooling Mixer
Packaging & DeliveryPackaging Details:Delivery Detail:

Wood Pallet & Film Wrap (High Speed Mixer)

30 Working Days Since Down Payment (High Speed Mixer)

Specifications
High Speed Mixer
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Heat-cooling mixer unit
4. Application: granules, powder
Why Choose High Speed Mixer Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu, Blue Star, Wacker, Momentive...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management



Application of Lanhang Brand High Speed Mixer

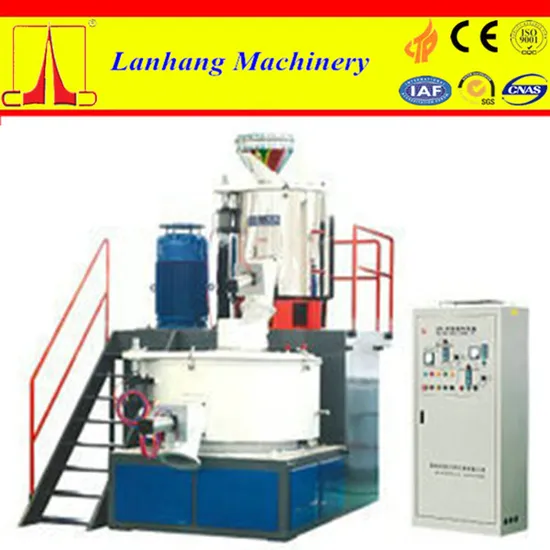

SRL-Z Series Mixer units are widely used for mixing, drying, and coloring for all kinds of plastic resin such as PVC , PE, PP. They can also be applied in drying of engineering plastic such as, ABS, PC, etc. This unit is composed of heating and cooling mixers. Hot material from heating mixer is fed into cooling mixer for cooling to eliminate gas and avoid burning.

Main Parameters of Our High Speed Mixer

Model	SRL-Z50/100A	SRL-Z100/200A	SRL-Z200/500A	SRL-Z300/600A	SRL-Z500/1000A	SRL-Z800/1600A
Total Volume (L)	50/100	100/200	200/500	300/600	500/1000	800/1600
Working Volume (L)	37/70	75/160	150/320	225/360	375/640	560/1100
Motor Power (Kw)	7/11/5.5	14/22/7.5	30/42/11	40/55/11	55/75/15	83/110/22
Paddle Speed (rpm)	800/1500/220	650/1300/180	475/950/130	475/950/130	430/860/60	390/500/50
Gas Consumption (t/h)	2	3	4	5	6	10
Heating Method	Electric / Friction
Cooling Method	Water / Oil
Discharging Method	Manual / Pneumatic				Pneumatic
Mixing Time	6-8 min/pot
Dimension (m)	2.4x1.8x2.0	2.5x2.0x2.2	4.5x2.3x2.4	4.5x2.6x3.2	4.6x3.0x4.0	6.2x4.2x4.5
Weight (T)	2	3	3.5	4.2	5.8	8

Packaging & Shipping
Wood Pallet & Film Wrap ( High Speed Mixer )

Our Services
High Speed Mixer
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
