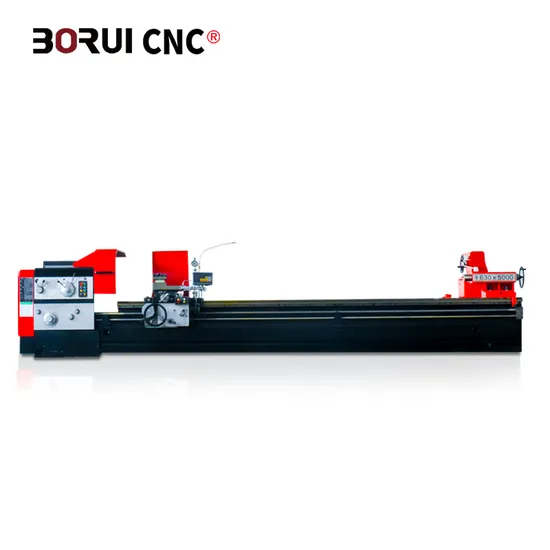

Cw Series Universal Horizontal Heavy Duty Big Bore Lathe Machine Cw6163b with CE

Product Description

CW6163 Universal Heavy duty large chuck lathe china engine turning Lathe machine
Product Description
This series lathe machine is suitable for internal and external turning, tappering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot.
This machine could machining steel, casting, nonferrous metals and etc.
The dimensional accuracy of machined workpiece could reach to IT6-IT7, and with good surface roughness.
The Machine with handle breaker, easy to operate, safe and reliable.
The main specification :

Type	CW6163B	CW6263B	CW6180B	CW6280B
Max. swing over bed	630mm		800mm
Max. swig over cross slide	350mm		550mm
Max. length of work piece	1500/3000/4000/5000/6000mm
Max. length of machining	1350/2850/3850/4850/5850mm
Max. swing in gap		800mm		1000mm
Max. length in gap		230mm		230mm
Width of bed	550mm
Spindle bore	105/130/150mm
Spindle nose type	A2-11
Spindle motor	11kw
Spindle speed	7.5--1000rpm		6--800rpm
Number and range of length-ways feeds	64/0.1--24.3 (grades/mm)
Number and range of crosswise	64/0.05--0.912(grades/mm)
Number and range of machining metric thread	50/1--240(grades/mm)
Number and range of machining inch thread	26/1--14(number/kinds/mm)
Number and range of machining module thread	53/0.5--120(kinds/mm)
Number and range of machining diametric pitch	24/1--28(number/knds)
Screw pitch	12mm
Saddle rapid traverse speed	4000mm/min
Size of tool section	30×30mm
Dia. and tape of tail-stock quill	100/M5
Traverse of tail-stock quill	250mm
Cross amount of movement of tail-stock	±15mm
Overall dimension	3700/5200×1450×1540 mm
Net weight	3700/4700kg

Standard Accessories:
1. Centers;
2. Steady rest (750mm without this);
3. Follow rest (750mm without this);
4. Foot plate;
5. 3-jaw chuck;
6. Leading screw guard; (3000mm without this)
7. Toolpost protection;
8. Chuck protection;
9. Cooling system;
10. Work Lamp.
11. Back guard Optional Accessories 1. Quick change toolpost
2. 2-axis Digital readout
3. 4-jaw chuck
4. Tamping attachment
There are also following features:
1. The side wall of bed is constructed with double-rib Plates, and the shape of internal ribs is of box type and bevel ribs combination. The rigidity is higher than that fo ordinary lathes. The precision is stable. And these lathes can carry out strong force cutting.
2. On apron, there is a device ,operated by a single lever, used for rapid traverse of the carriage . Spindle's braking and rotating direction change is controlled by hydraulic system, or by hand operation, all to user's choice.
3. The saddle guide way is glued by "TSF" soft belt wear resisting materials.
4. On user's demand, we can equip the lathe with automatic feeding mechanism .The top slide can be used independently for turning of short cone. In combination with longitudinal feeding, it can also turn long taper surface.
Details Display
Packing Shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
Our Service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
