Steel Frame House Machine Price

Steel Frame House Machine Price

US$59,800.00
1-4 Sets
US$52,500.00
5+ Sets

Basic Info.

Model NO.
C89-5S
Certification
CE, ISO9001
Condition
New
Automatic Grade
Automatic
Drive
Hydraulic
Machine Color
Green or as Your Request
Name
Light Gauge Steel Framing Machine
Hydraulic Power
7.5kw
Material Width
174mm
Height of Roofing
38mm
Voltage
380V/50Hz/3pH
Control System
PLC(Imported Brand)
Material Thickness
0.6-1.2mm
Effective Width
89mm
Speed
25-30m/Min
Transport Package
Standard Packed for Export
Specification
4200*800*1100mm
Trademark
XHH
Origin
Fujian, China (Mainland)
HS Code
8455229090
Production Capacity
10sets/Moth

Packaging & Delivery

Package Size
5000.00cm * 5000.00cm * 2000.00cm
Package Gross Weight
3000.000kg

Product Description

Light gauge steel framing systems consist of structural frames fabricated using cold formed steel sections. They can be used throughout a structure, including load-bearing exterior walls, non-load bearing interior walls, floor joists, curtain walls and roof trusses.The system automatically generates wall and floor fabrication drawings, structural layouts, cut lists and other material reports.By automating these processes, manufacturers save a lot of time in drafting, material reporting, data entry, manufacturing, and correcting all errors.
We offer a complete range of machines for light gauge steel framing. Simply provide the profile, thickness, or any specific requirements you have, and we will provide you with customized solutions.
Top Selling Cheap Discount Adjustable Multiple Profile
Suitable for 1-3 floors building Suitable for beginners Suitable for multiple floor building

Producing Process Flow

Profile Dimensions
Profile Model C Section(mm) Thickness
Web Flange Lip
C89 89 38 9 0.6-1.2mm

Real Customer FeedbackReal Customer's Project
Light gauge steel framing machines are used to create the structural framework of buildings by cold forming steel sections into columns, beams, studs, tracks, and joists. These machines can be used in a variety of applications, including:residential and commercial construction,Prefab and modular house, warehouses and manufacturing facilities etc.

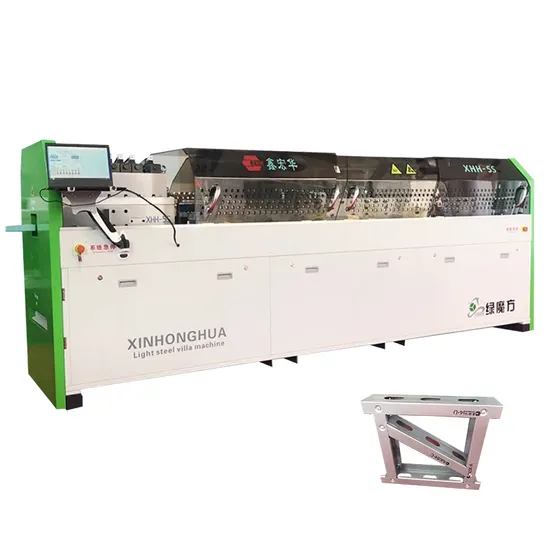

Machine Picture
Technical Parameters
Size
C89
Dimension
4200*800*1100mm
Main Servo Motor Power
7.5KW
Hydraulic Motor
7.5kw
Forming Steps
9Steps
Forming Speed
4-5tons/8hours
Voltage
380V/50HZ/3PH
Effective Width
89mm
Material Width
174mm
Tolerance for cutting and punching
±0.5mm
Tolerance for forming
±0.75mm

Machine Components & Specifications
No. Items Quantity Specifications
1 Steel Strip Uncoiler 1 Automatic Start-stop Device,Converter Motor Driven
Coil Exterior Diameter:≤1300mm
Rated Load:3T
Main Motor Power:1.5kw
Material Width:50-500mm
Inner Diameter:450-530mm
2 Roll Former Machine 1 Machine Dimensions:4000x800x1100
Machine Weight:2.5T
Forming Method :9 stations
Drive Mode: Gear + Sprocket
Main Motor: 7.5kw Servo Motor
Roller Material:Gcr15
Main Shaft Material : 40Cr
Forming Speed :2700m/hour(without punching & cutting)
Production Capacity :4-5tons/8h(overall speed:including drywall panel, roof truss and floor joist)
3 Hydraulic Puncher/Cutter 6 Punching method:Post Punching(high precision performance on position & dimension)
Die Material:Cr12mov;
Cutting method:Forming Cutter,Blanking shear with three blades;
Material of blade:Cr12mov;
surface treatment:CNC semi-finishing ,Vacuum treatment to 58-60HRC CNC refining
4 Hydraulic Station 1 Hydraulic Motor Power:7.5kw
Tank Capacity:180L
Inlcuding compression refrigeration system
5 Controlling System 1 Laptop Computer 1 set
PLC controller 1 set
NC controlling software
Punching Position Controlling
Cutting Position Controlling
Production Batch Quantity Controlling
Batch Detail Quantity Controlling
Any time monitoring during production
Remote control and maintenance
6 Label Printer 1 can print LOGO,Picture,Chinese,English,figure
7 Layout Table
8 Tool
9 Spare parts
10 User Manual 1 copy

Service
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
Shipping
For different machines or production line parts, we have different packing solutions:
- For the machine or production line, we will use plastic film to cover and wrap. Then will be loaded to the container by forklift or crane.
- For the key parts such as the roll forming rollers set, we will use the metal frame to package.
All Steadily fastened in the container in a suitable manner with steel ropes and locks, being suitable for long-distance transportation.
Our Factory
XIAMEN XINHONGHUA MACHINERY CO. LTD.(FUJIAN XINHONGHUA MACHINERY CO. LTD) was founded in 2004.as the earlier company which engaged in the manufacture of cold roll forming machines,after the reform and innovation of more than 19 years,and on basis of manufacture of modern management concepts,strong technology,advanced production technology,perfect service system,we have been currently in the domestic leading position,and as good competitor among the same industry of world. Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.
