Water Glue & BOPP Thermal Lamination Film Laminate Machine

Product Description

Product Description
Feature:
1. Air pump pressure gluing is adopted, which can automatically adjust the gluing amount, apply glue evenly, recycle and save glue loss;
2. silicone rubber rollers imported materials, with sticky ink under high temperature, high pressure, non-stick characteristics of the paper;
3. magnetic clutch brake tension control, tension can be adjusted according to the need of the corresponding size;
4. photoelectric automatic tracking correction system, non-contact touch long life, high reliability, corrective effect is more ideal;
5. Manual Oil pressure booster system to provide greater composite coating roller, the pressure is sufficient to meet the needs of a variety of laminating film;
6.Tag anti-curling device(this has country been patented,patent number:2015208631878).
Teachnical Specifications:

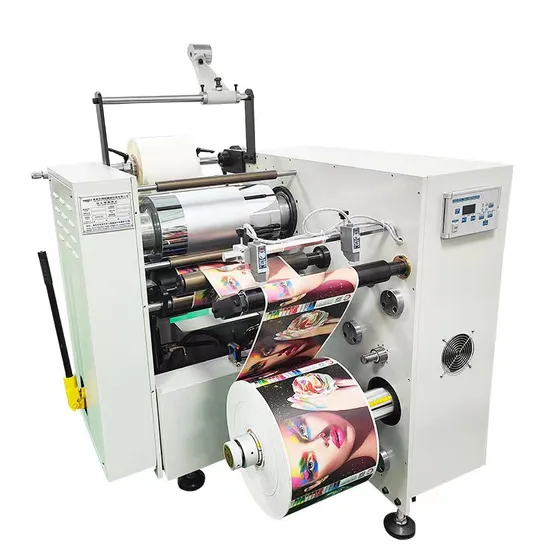

Name:	XHM500S-J Water Glue & BOPP Thermal Lamination Film Laminate Machine(Correcting)
Model:	XHM500S-J
Max. Rewind diameter:	520mm
Roll laminating width:	100mm(min)~420mm(max)
Core Diameter:	76mm
Roller length:	500mm
Film covering method	Multifunctional (glue coating / heating coating)
Laminating Speed:	6~70m/min
Laminating Temperature:	80-130ºC
Heating Way:	Heating oil
Heat conducting oil Model:	320#
Voltage and Power:	380V,6KW
Overall Dimension:	1600×1200×1350
Weight:	0.8t

Machine Detailed Pic for Reference:
