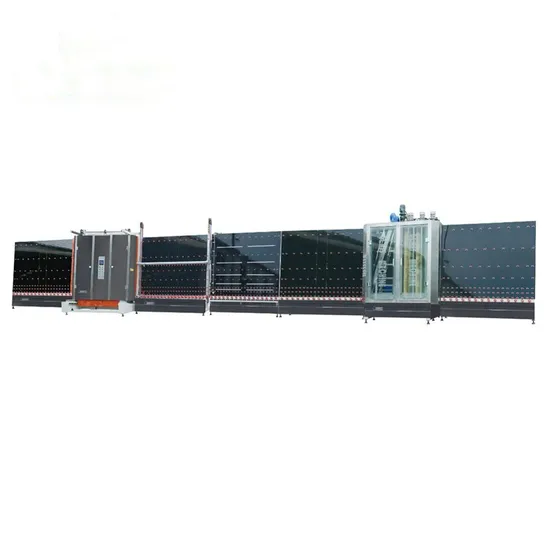

Top Quality Double Glazing Glass Production Line PLC Vertical CNC Automatic Insulating Glass Machine

Top Quality Double Glazing Glass Production Line PLC Vertical CNC Automatic Insulating Glass Machine

US$11,000.00-16,000.00 1 Set (MOQ)

Basic Info.

Model NO.
JYW-1600A
Automatic Grade
Automatic
CNC or Not
not CNC
Voltage
380V
Product Name
Top Quality Double Glazing Glass Production Line P
Input Power
23kw
Air Pressure
0.5-0.8MPa
Max. Processing Glass Size
1600*2000mm
Min. Processing Glass Size
280*450mm
Working Direction
Right to Left or Left to Right
Single Glass Thickness
3-18mm
Transfer Speed
8-45m/Min
Machine Dimension
21500*2400*3200mm
Weight
6000kg
Transport Package
Standard
Specification
JYW-1600A
Trademark
Truepro
Origin
China
HS Code
846490
Production Capacity
200 Sets/Year

Product Description

Top Quality Double Glazing Glass Production Line PLC Vertical CNC Automatic Insulating Glass Machine
Machine feature:
-Automatically distinguish the coating side of coated glass and low-E glass.
-Static state load glass when adding glass material to ensure safety in production.
-The washing machine adopts stainless steel and other corrosion resistant material, good waterproof, security, clean, and long
useful life. Adopt waterproof bearing without oil lubricant.
-Can clean 3~25mm thickness glass, with wide using range.
-It can process same edge double insulating glass with high efficiency.
-Adopts the world famous brand low-voltage electrics, sensor and PLC, etc.
- PLC control system with touch screen interface, simple operation and high automatic.
-Treat the surface of plate guard with baking paint, powder coated. Appearance is beautiful and durable.
-The dry part use circulation hot wind that ensure the dry effect for glass and reduce the noise.
Parameter:
Model JYW-1600A
Input Voltage 380V 50Hz
Total Power 23.0KW
Cutting Glass Size 1600×2000mm
Min Glass Size 280×450mm
Glass Thickness 3~18mm
Working Speed 8~45m/min
Total Weight 5000kg
Size of Line 18500×2400×3200mm

Machine details:
Company information
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.
4. Insulating glass production line
