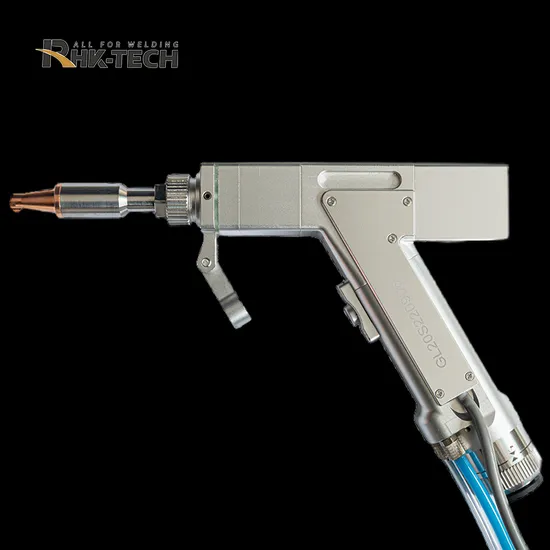

Rhk Tech Hot Handheld 1500W Wobble Fiber Aluminum Stainless Steel Laser Welding Head Torch Laser Welding Gun for Laser Welding
Basic Info.
Model NO.
1500W
Application Material
Aluminum Stainless Steel Carbon Steel
Wavelength
1064nm
Cooling System
Water Cooled
Supply Voltage
220V AC, 50/60Hz
Applicable Power
Less Than or Equal to 1500W
Collimation
D20*5 / F60
Focusing
D20*4.5 / F150
Reflex
30*14 T2
Specification of Protective Mirror
18*2
Maximum Support Air Pressure
10 Bar
Spot Adjustment Range
Line 0-5mm
Transport Package
Wooden Box and Iron Tray
Trademark
RHK TECH
Origin
China
Product Description
FeaturesIt uses a professional handheld welding head. Equipped with swing welding mode, the beam spot
width can be adjusted, and the welding fault tolerance is strong. It makes up for the disadvantage
of the small laser welding spot, expands the tolerance range of the processed parts and the width
of the weld. Also it can obtain a better weld formation. Handheld welding head with digtial display function, can change different nozzles. Support welding
and cutting.
Product Parameters
| Supply voltage | 220±10% V AC 50/60Hz |
| Placement environment | Smooth, no vibration and shock |
| Working ambient temperature | 10~40ºC |
| Humidity of working environment | <70% |
| Cooling mode | Water-cooling |
| Applicable wavelength | 1064nm (±10nm) |
| Applicable power | ≤2000W |
| Collimation | D20*5 / F60 |
| Focusing | D20*4.5 / F150 |
| Reflex | 30*14 T2 |
| Specification of protective mirror | 18*2 |
| Maximum support air pressure | 10Bar |
| Vertical adjustment range of focus | ±10mm |
| Spot adjustment range | Line0-5mm |
| weight | SUP15S 1.25kg / SUP20S 0.8kg |
