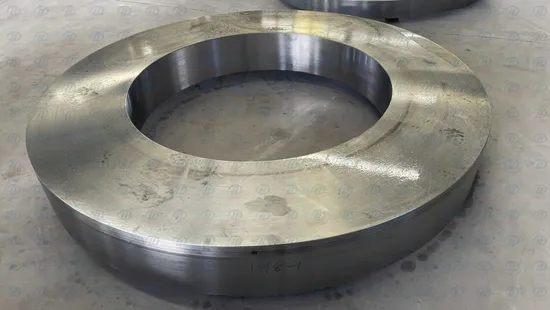

Forging Ring Customized Rough Machining and Forging Processing

Product Description

Forged ring carbon steel flange stainless steel flange open die forging professional forging factory Rolled forged rings
The forged ring for feed machine pallet mill.
1.Forged SHAFT,forged RING;forged BLOCK;forged FLANGE.
Pipe sheet,gear ring,slewing bearing ring...most of forging parts.
Forged steel flanges/carbon steel flanges/stainless steel flanges.
2.Material: 4130, 4140, 4317, 4142, 4340, UNS440, 34CrNi3Mo,25Cr2Ni4MOV,18CrNiMo5, 30CrMo, 9Cr2Mo, 9Cr2W, 9Cr3Mo, 60CrMoV etc.
3.Dual certified to ASME/ASTM SA/A182 and EN10222-5 or DIN17440
4.PED-AD 2000-Merkblatt W0

Forging Product Size Range
Forgings	Raw Material	Min.Size (mm)	Max.Size (mm)	Min.Weight (kgs)	Max.Weight (kgs)	Heat Treatment
Shaft	Carbon steel Stainless Steel Alloy Steel	Φ30×50	Φ800×5000	0.3	20000	Normalizing; Queching; Tempering Annealing; Quenching&High Temperature Tempering
Ring		Φ75 ×Φ15×12	Φ5000 ×Φ4500×300	0.3	9000
Disc		Φ90 ×20	Φ3500 ×100	0.5	10000
Block		100 ×100×100	1500 ×1500×1500	7.85	26000
Gear Ring		Φ75 ×Φ15×12	Φ5000 ×Φ4500×300	0.3	9000
Hollow Bar		Φ90 ×Φ49×133	Φ1000 ×Φ900×3000	4	12000
Other			Φ5000		30000

Company Profile:
DHDZ China are manufacturer of the High Quality Steel Flanges and Forgings based on different standards: ASME, JIS, BS, ISO, DIN, EN, SABs etc.
Flanges covers Weld Neck, Slip On, Threaded, Lap Joint, Socket Weld, Blind, Orifice, Loose, Plate, Oval, Wind Power Flange, Tube Sheet, other Customized Flanges.
Forgings covers Blocks, Disks, Rings, Cylinders, Shafts, Tubes, Bars, other Customized forgings, etc..
Main Mateirals: Carbon Steel, Stainless Steel and Alloy steels;
International Standards: ASME, JIS, DIN, GB, BS, EN, AS, SABS, etc.
Standardization and Customization are both our advantages.

Certificate: ISO system, PED certificates, TUV certified.
Nearly 20 years experience;
clients from more than 15 Countries in EU, USA, Gulf area, UK, South America, AU, Asia, etc..
We will do our best to support you no matter big or small you are!

3. SPECIFICATION DETAILS:

Material	Carbon steel	ASTM A105, A350 LF1, LF2, LF3, LF6, CL1/CL2,; A694 F52, F60, F65, F70; A516 Gr. 60, 70; BS-EN 10222-2 P245GH, P280GH; EN10222-4 P355NH, P355QH; EN10273 P250GH, P265GH; DIN 17243 C22.8; VD-TUEV350/3 C21; GB/T 1591 Q345B, Q420B; NB/T 47008 16Mn,20#; BS 10250-2 S235JRG2;
	Stainless steel	ASTM A182 F304/304L, F316/316L, F316H, F304H, F321H, F310, F316Ti; NB/T 47010 S30403, S30408, S31603, S31608, S32168; BS-EN 10222-5 1.4301, 1.4307, 1.4404, 1.4541, 1.4571;
	Alloy steel	ASTM A182 F95, F9, F11, F12, F22,F91,F51,F53,F55,F60,F44,etc. NB/T 47008 15CrMo, 12Cr1MoV, 1Cr5Mo; GB/T 3077 42CrMo, 30CrMo, 35CrMo;
	C-276/UNS N10276	ASTM B575/ASME SB-575,ASTM B574/ASME SB-574,ASTM B622/ASME SB-622,ASTM B619/ASME SB-619,ASTM B366/ASME SB-366,ASTM B564/ASME SB-564
Dimension Standard (DN15-DN4000mm)	ANSI & ASWE (class 150-2500)	B16.5, B16.47, B16.48;
	DIN (6-40bar)	DIN2527, 2573, 2576, 2630-2638, 2627-2629, 2565-2569;
	JIS (5K -30K)	JIS B2202, 2210, 2220;
	BS EN1092-1 (6-40Bar)	type 01, type 02, type 03, type 04, type 05, type 11, type 12, type 13, type 21, etc.
	others	MSS SP44, AWWA C207, API 6A, API 16A, AS 2129, GB/T9119, JB/T 74, HG/T20592, 20615, SH 3406, Q/GDW 705, etc.. other equivalent standards, and customization with drawings;
TYPE	1.Flat flange 2.Blind flange 3.Slip on 4.Lap joint flange 5.Welding neck Flange
	6.Socket welding 7.Threaded flange 8.Long welding neck flange. etc.
Connection	Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc
Size	1/2"-100"
Package	1.>Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside).
	2:As Customers' Requirements
Certificate	TUV,ISO9001:2015;
Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.
