Woven PP Bag Manufacture Machine

Product Description

Product Description
Since 1998, Zhejiang Tianfeng Plastic Machinery Co., Ltd. has been a professional manufacturer for designing, manufacturing and developing of the production machinery of plastic flexible weaving package products in China. The company has passed ISO9001:2008 international quality management system certification, is member of both China Plastics Processing Industry Association (CPPIA) and China Plastics Machinery Industry Association (CPMIA), the High & New Technological Enterprise (H.N.T.E.) of State.
The company covers a total area of over 65,000 m², including over 50,000 m² of workshops and office buildings.
We can produce the complete line machines in the below:
PP WOVEN BAG PRODUCTION LINE PP WOVEN BIG BAG PRODUCE LINE PP.HDPE SHADE NET PRODUCTION LINE PP MAT PRODUCTOON LINE PP LENO MESH BAG PRODUCTION LINE Product Parameters

Model	G100/30-800/130	G110/33-1200/200	G120/33-1500/240	G130/33-1800/300
Extruder	E100/30	E110/33	E120/33	E130/33
Diameter of screw	100mm	110mm	120mm	130mm
Ratio of screw L/D	33:1	33:1	33:1	33:1
Motor of extruder	90kw	110kw	132kw	160kw
Max. extrusion capacity (PP) *	350kg/h	450kg/h	550kg/h	650kg/h
Width of T-die	800mm	1200mm	1500mm	1800mm
Max. winding speed *	450m/min	450m/min	450m/min	450m/min
Range of tape fibre	500 - 2000 denier	500 - 2000 denier	500 - 2000 denier	500 - 2000 denier
Stretching ratio	4 - 10 times	4 - 10 times	4 - 10 times	4 - 10 times
Number of winder (standard)	130 spindles	200 spindles	240 spindles	300 spindles
Overall dimension (L×W×H)	33000×3300×3000	36000×3700×3000	39000×4000×3000	42000×4300×3000

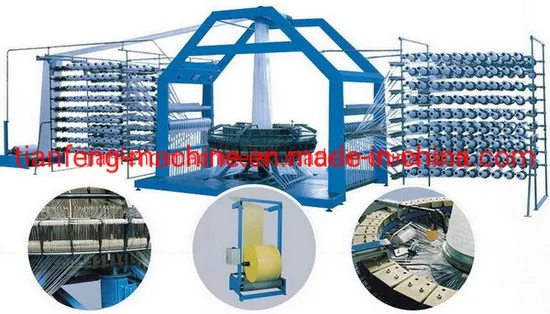

Detailed Photos

After Sales Service

01. How to get in touch with us?
Direct to the company:Zhejiadun Road,Aojiang Town,Wenzhou City,Zhejiang Provice,China
02. How to answer technical guidance?
For some customers who need non-standard equipment, we will communicate with the company's relevant technical personnel according to the customer's specific requirements, taking into account the technical feasibility and production costs, and give customers solutions.
03. How to make a quotation?
Based on our company's research and development costs, production costs and customer purchases, we conduct calculations to determine the price of the product.
04.How to install machines
We will dispatch technicians for the installation and the start up commissioning if clients request.
