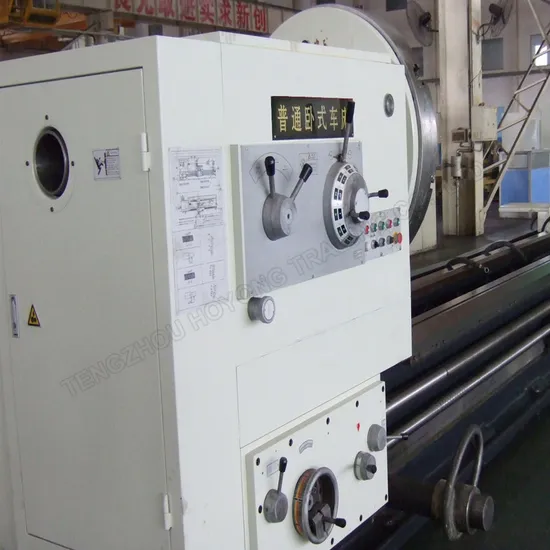

High Quality Horizontal Heavy Duty Lathe Machine Cw61100d Cw62100d Cw61125D Cw62125D

Product Description

HEAVY DUTY LATHE MACHINE FEATURES:
These lathes can perform to turn end-faces,cylindrical surfaces and internal holes of various parts as well as metric,inch,module and pitch threads.The
top slides can be operated individually by power for cutting short taper surface. Long taper surface can be turned automatically through the compound
movement combining longitudinal feed with the top slide feed,moreover,the machines may be used for drilling,boring and trepanning.
They are characteristics of power,high spindle speed,high rigidity.The various ferrous and non-ferrous metals parts may be turned through the heavy
cutting by carbon alloy tools.
SPECIFICATIONS:

SPECIFICATION		MODEL
		CW61100D CW62100D	CW61125D CW62125D	CW61140D CW62140D	CW61160D CW62160D
Max.swing diameter over bed		1040mm	1290mm	1440mm	1640mm
Max.swing diameter over carriage		650mm	900mm	1030mm	1030mm
Max.swing diameter on gap		1500mm	1750mm	1900mm	2100mm
Width of bed		755mm
Max.length of workpiece		1000mm 1500mm 2000-12000mm
The top two largest bearing		6t
Spindle nose		A15(1:30)
Sindle bore diameter		130mm
Taper of spindle bore		Metric No.140#
Range of spindle speed		3.15-315r/min 21kinds 3.5-290r/min 12kinds
Spindle front bearing inner diameter		200mm
Longitudinal feeds range		0.1-12r/min 56 kinds
Transversal feeds range		0.05-6mm/r 56kinds
Rapid speed	Z-axis	3740mm/min
	X-axis	1870mm/min
	upper toolpost	935mm/min
Metrec threads range		1-120mm 44kinds
Inch threads range		3/8-28 TPI 31kinds
Module threads range		0.5-60mm 45kinds
Pitch threads range		1-56TPI 25kinds
Taper of tailstock sleeve		Morse NO.80
Diameter of tailstock sleeve		160mm
Travel of tailstock sleeve		300mm
Main motor power		22kW
Rapid motor power		1.5kW
Coolant pump power		0.125kW

STAND ACCESSORIES
1. four-jaw chuck F 1250mm 2.CW61125L,CW61140L,CW61160L:steady rest F120--480mm(for more than 2m) CW61180L,CW61190L: steady rest F400--700mm(for more than 2m) 3. follow rest(for more than 2m) 4. Morse No.6 Center 5. Tools 6.Set-over screw
OPTIONAL ACCESSORIES
1. Metric chasing dial device2. Inch chasing dial device3. Inch leadscrew4. T-type toolpost
