Universal Milling Machine X6236 X6232 X6036 Lm1450A XL6436 X5750
| US$4,000.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6236 X6232 X6036 LM1450A XL6436 X5750
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Manual
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Number of Shaft
3
Hole Diameter
<50mm
Layout
Universal
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month
Product Description

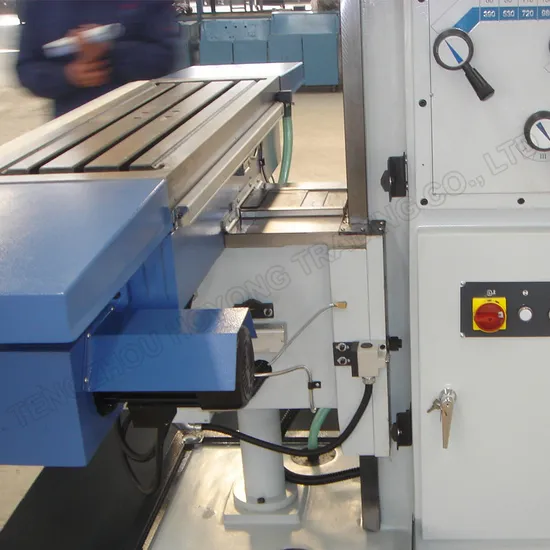

UNIVERSAL MILLING MACHINE FEATURES:
sturdy, zero-backlash rectangular guideways
Universal cutter head with 2 levels can be adjusted to virtually any angle (HURON System)
rapid feeds on all axes allow quick positioning
control panel swivels for comfortable operation
separate drives with gearbox for powerful material removal
large machine table with one 1000 mm X travel
SPECIFICATIONS:
| SPECIFICATION | UNIT | X6236 | ||
| Spindle taper | 7:24 ISO40(V);7:24 ISO50(H) | |||
| Distance from spindle center line to column surface | mm | 350~850 | ||
| Distance from spindle nose to worktable | mm | 210~710 | ||
| Distance from spindle center line to worktable | mm | 0~500 | ||
| Distance from spindle center line to arm | mm | 175 | ||
| Spindle speed | r/min | 11steps 35~1600 (V) ; 12steps 60~1800 (H) | ||
| Worktable size | mm | 1250×360 | ||
| Worktable travel | Longitudinal | mm | 1000 | |
| Cross | mm | 320 | ||
| Vertical | mm | 500 | ||
| Worktable longitudinal/ cross power feed | mm/min | 8steps 15~370 ;Rapid:540 | ||
| Worktable elevating power feed | mm/min | 590 | ||
| T Slot | Number | mm | 3 | |
| Width | mm | 18 | ||
| Distance | mm | 80 | ||
| Main motor | Kw | 2.2 (V) 4 (H) | ||
| Worktable power feed motor | W | 750 | ||
| Worktable elevating motor | KW | 1.1 | ||
| Coolant pump | W | 90 | ||
| Coolant flow | L/min | 25 | ||
| Overall dimension (L×W×H) | mm | 2220×1790×2040 | ||
| Net weight | kg | 2400 | ||
