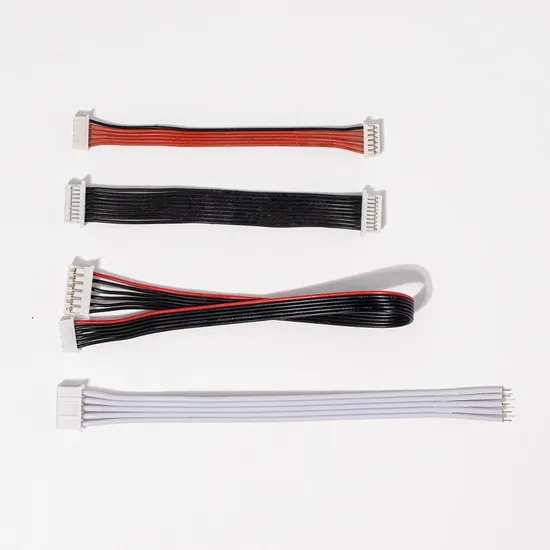

Xhp 2.54mm to Phr 2.0mm Pitch Cable Assembly or EV

Product Description

Chinese Professional Manufacturer Motorcycle Wiring Harnes

Length	customized
Connector	Molex/JST/AMP
pitch	0.5/0.8/1.0/1.25/1.27/2.0mm/2.54mm
Color	Customized Color
Sample	Available
MOQ	customized
Service	OEM ODM Accept

Specification
Type	Sectional area	Conductor			Insulation thickness	Overall diameter	Conductor resistance	Normal current	Maximum current
		Size	Construction	Diameter
	mm2	AWG	No./mm	mm	mm	mm	Ω/KM	A	A
Stranded/1007	1.3	16	65/0.160	1.47	0.42	2.33	14.6	5.2	5.9
	0.8	18	41/0.160	1.18		2.02	23.2	3.2	3.7
	0.5	20	26/0.160	0.95		1.8	36.7	2.0	2.3
	0.3	22	17/0.160	0.76		1.6	59.4	1.28	1.46
	0.2	24	11/0.160	0.61		1.45	94.2	0.81	0.92
	0.1	26	7/0.160	0.49		1.33	150	0.51	0.58
	0.09	28	7/0.127	0.39		1.23	239	0.32	0.36
	0.06	30	7/0.102	0.31		1.15	381	0.2	0.23

1.Safe to use:plug and play, easy to use.As long as you connect the USB cable to computer or mobile power supply,you can charge normally without monitoring,and you can do other work at will during the charging proces
2.Wide Applications:The USB Charger Cable widely suitable for For Sky Viper Drone s670 v950HD v950 STR s1700 V2400H Different plug specifications can be customized : JST / Molex / Micro Fit /Doupont etc .....
Our Services 1. We offer OEM and ODM service to our customer.
2. We also provide customized size for our customer.
Complete with CAD drawing draft and interrelated technical parameters, and quality requirements.
3. We can provide quality product materials that are not easily damaged.

Order and Mass Production: 1) We will send PROFORMA INVOICE to you when the order is confirmed.
2) We will start to have mass production when confirming our sample and 30% T/T deposit received.
3)Customers need to confirm before formal production, we will actively cooperate.
4)Production and processing in strict accordance with customer requirements (customers can provide samples or drawings).
5)If the products need to be packed, we can provide our factory's packaging, we can also pack according to the requirements of customers.
6)We can produce according to some special needs of customers, such as tail processing; labeling; or customers provide materials for us to process injection molding, etc.
7) Quality is under strict manage and supervision during every production.
About the price:
due to different product characteristics (wire length, number of cores), the actual price is also different, our company provides a formal quotation.

About samples:
we can provide samples for free if we have stock, and charge sample fee for special samples according to the actual situation (the sample fee can be
returned when it reaches the corresponding payment amount).
About payment for goods:
1) T/T /Western Union/acceptable;
2) 30% deposit and 70% before shipping all goods out is acceptable for big order;

FAQ

1 What we do ?

We provide a non-stop service on cables which including Cable Desgining ,Drawing ,Prototyping ,Sampling and Manufacturing etc .

2 When can I get the quotation ?

We will quote you within 24 hours after we received your inquiry .If this is an urgent matter ,let us know and we will regard it as priority .

3 How can I get sample ?

Kindly let us know your sample requirements and we will arrange samples for your testing .Sample cost will be charged if necessary and will revert to your official order .

4 When can I except to receive sample ?

Our time frame for sample is around 2-7 days ,depends on your cable specification .

5 If I need customized cable ,how will it work ?

Please send us the drawing if you have ,or talk to our engineer and they will help out .

6 What is the warranty ?

All TATSHING products come with a one-year warranty

7 In an unlikely event you get the faulty products , what is the solution ?

Contact us for the details and we will arrange a second shipment for free replacement after we figured out problems .
