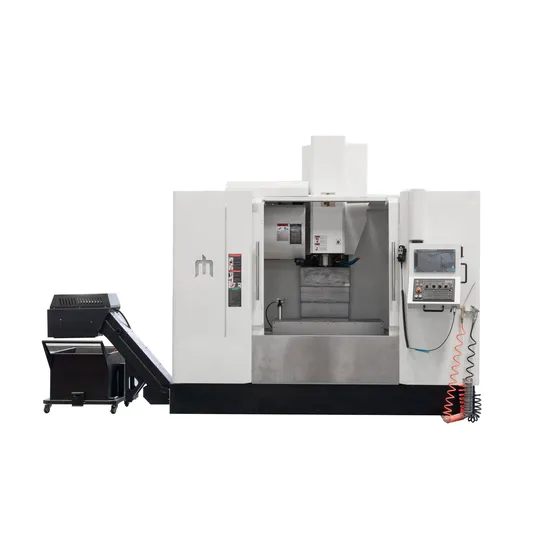

Automated CNC Vertical Machine Vmc855s Milling Lathe Tool Taiwan High Speed Spindle Center
| US$3,456.00-4,689.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC850S
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Taper
Bt40
Spindle Speed
8000-10000rpm
Max Table Load
1000kg
Main Motor
13kw
Travel X Axis
800mm
Travel Y Axis
800mm
Travel Z Axis
500mm
Color
Customized
G00 Fast Infeed Axis X/Yz(M/Min)
48/48/48
G01 Cutting Infeed
1-10000
Spindle Nose to Table
150-650
Spindle Center to Column
545
Worktable Size
900X500
T-Slot
3X18X130
Max Load
500
Transport Package
Plywood Case, Steel Base
Specification
3200*2400*2800
Trademark
Suji
Origin
Jiang, China
HS Code
8457101000
Production Capacity
1000set/Year
Packaging & Delivery
Package Size
200.00cm * 100.00cm * 100.00cm
Package Gross Weight
10000.000kg
Product Description
Company ProfileSuji Intelligent Equipment Jiangsu Co., Ltd
About Us Suji Intelligent Equipment Jiangsu Co., Ltd was established in 2018 and is located in Jiangsu Shuyang National Economic Development Zone. We are a comprehensive science and technology enterprise specializing in the development, production, research and development, sales, and service of CNC machine tools, including vertical machining centers. With a professional technical team and years of experience in CNC machine tool manufacturing, we are committed to providing cost-effective machine tools that offer high speed, high rigidity, high performance, and high efficiency.
Product Range Our major products include:
Vertical machining center series
Horizontal machining center series
Gantry machining center series
Flat rail CNC lathe
Inclined rail CNC lathe
These machine tools are ideal for various industries such as communication, consumer electronics, medical, LED, automotive, aerospace, and more.
Quality and Service We have a strong research and development ability and have obtained the ISO9001 quality system certification. Our company is built on the foundation of quality and service. We adhere to the business philosophy of creating value for customers, opportunities for employees, and benefits for society. Our service concept is to provide professional and sincere support to our customers. We are dedicated to improving our customer service system and offering high-quality pre-sale, sale, and after-sales service, along with professional technical support.
Join Us We are committed to meeting the needs of our customers and markets. We invite all our partners to join us in creating a better tomorrow.
Product Description
Detailed Photos
Product Parameters
| S/Model | Unit | VMC640S | VMC850S | VMC855S | VMC1160S | VMC1370S | VMC-1580S |
| Machining Range | |||||||
| X axis travel | mm | 600 | 800 | 800 | 1100 | 1300 | 1500 |
| Y axis travel | mm | 400 | 500 | 550 | 600 | 700 | 800 |
| Z axis travel | mm | 450 | 500 | 550 | 600 | 700 | 700 |
| Spindle nose to table | mm | 150-600 | 150-650 | 120-670 | 120-720 | 110-810 | 130-830 |
| Spindle center to column | mm | 470 | 545 | 595 | 645 | 750 | 810 |
| Workbench size | |||||||
| Table Dimension | mm | 700x420 | 900x500 | 1000x550 | 1200x600 | 1400x700 | 1800x800 |
| T-slot Dimension | mm | 3x14x120 | 3X18X130 | 5X18X90 | 5X18X100 | 7X18×100 | 22X5X140 |
| Max Load | kg | 250 | 500 | 500 | 800 | 1000 | 1500 |
| Spindle | |||||||
| Taper | BT40 | BT40 | BT40 | BT40 | BT40/BT50 | BT40/BT50 | |
| Max Speed | rpm | Direct 12000 | 8000-1000rpm | ||||
| Infeed System | |||||||
| G00 fast infeed(Axis X/Y/Z) | m/min | 48/48/48 | 48/48/48 | 48/48/48 | 36/36/36 | 36/36/36 | 36/36/36 |
| G01 cutting infeed | m/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
| Tool Magazine | |||||||
| Type | type | Disc | Disc | Disc | Disc | Disc | Disc |
| Capacity | unit | 24 | 24 | 24 | 24 | 24 | 24 |
| Machine Dimension | |||||||
| Length | mm | 1800 | 2300 | 2500 | 3200 | 3600 | 3850 |
| Width | mm | 2400 | 2800 | 2000 | 2400 | 3300 | 3100 |
| Height | mm | 2300 | 2700 | 2200 | 2800 | 2900 | 2900 |
| Weight | kgs | 4600 | 4600 | 4800 | 7500 | 10500 | 12000 |
Quality Control
Brands of Main Parts
