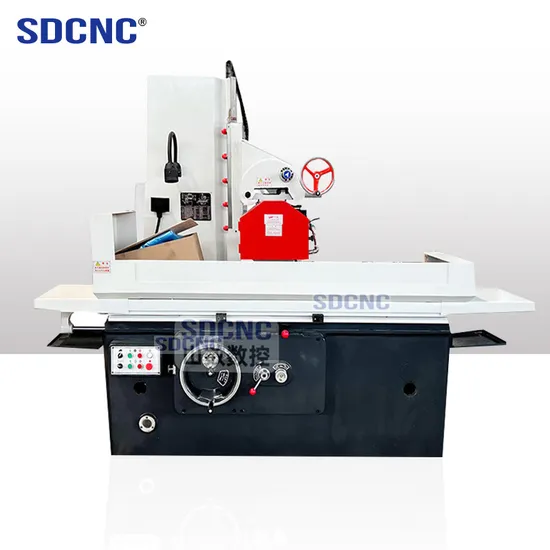

M7140 Conventional Ordinary General Surface Grinding Machine
| US$17,500.00-22,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7140
Type
External Grinding Machine
Processing Object
Gear
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Voltage
220V 380V 440V
Product Name
Surface Grinder Grinding Machine
Wheelhead Motor Power
5.5kw
Machine Tool Weight
3700kg
Color
Customizable
Transport Package
Wood Packaging
Specification
2800*1750*2350
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
280.00cm * 175.00cm * 235.00cm
Package Gross Weight
3550.000kg
Product Description
The main performance characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life
of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product Description
| Description | Units | M7130x1600 | |
| Size of work table(L x W ) | mm | 1600x300 | |
| Max. Longitudinal movement of worktable | mm | 1700 | |
| Max. Distance from the spindle centerline to the worktable surface | mm | 570 | |
| Max. Cross movement of grinding herd | mm | 350 | |
| Max. Vertical movement of grinding head | mm | 400 | |
| Vertical movement of the grinding head by hand wheel | Every lattice | mm | 0.01 |
| Each turn | mm | 1.00 | |
| Rapid lifting motor | Power | KW | 0.37 |
| Speed | R/min | 1440 | |
| Abrasive wheel dim (L x D x W) | mm | 350x127x40 | |
| Speed of grinding wheel | r/min | 1440 | |
| Total power of motor | KW | 10 | |
| Power of spindle motor | KW | 5.5 | |
| Power of oil pump motor | KW | 4 | |
| Processing accuracy | mm | 0.015/1000 | |
| Surface roughness | um | Ra:0.63 | |
| Package(L x W x H) | mm | 4500x2000x2350 | |
| Net. weight | Kg | 3550 | |
| Specifications | Unit | M7140A | M7140AX1600 | M7140AX2200 | |
| Table size | mm | 400x1000 | 400x1600 | 400x2200 | |
| Max.size to be grind | mm | 400x1000x400 | 400x1600x400 | 400x2200x400 | |
| Max.load capacity(with electric magnetic chuck) | mm | 630 | 1000 | 1380 | |
| Max distance from table surface to spindle center | mm | 600 | 600 | 600 | |
| Max.table longitudinal travel | mm | 1100 | 1700 | 2300 | |
| Min. Table longitudinal travel | mm | 200 | 200 | 200 | |
| Table longitudinal travel speed | m/min | 3-27 | 3-27 | 3-27 | |
| Table T slot | | 3x18 | 3x18 | 3x18 | |
| Wheelhead cross travel | Continuous feeding speed | m/min | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
| Intermittent feed travel | mm/t | 3-30 | 3-30 | 3-30 | |
| Per div feed of handwheel | mm | 0.02 | 0.02 | 0.02 | |
| Wheelhead vertical travel | Rapid speed | mm/min | 400 | 400 | 400 |
| Per Rev. feed of handwheel | mm/gra | 0.01 | 0.01 | 0.01 | |
| Per Rev. feed of handwheel | mm | 0.645 | 0.645 | 0.645 | |
| Wheelhead motor | Power | kw | 7.5 | 7.5 | 7.5 |
| Speed | rpm | 1440 | 1440 | 1440 | |
| Total rated power | kw | 11 | 11 | 11 | |
| Grinding wheel size(OD*W*ID) | mm | 400x40x127 | 400x40x127 | 400x40x127 | |
| Machine weight | kg | 4700 | 6600 | 8000 | |
