Industrial Wood Chipper Wood Pallet Crusher for Sale Slab Plank Log Veneer Drum Wood Chipper
| US$29,000.00-175,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HX1400, 1600, 2000
Cutter Material
Hard Alloy
Drive
Electric
Object
Wood, Wood
Type
Roller Crusher
Name
Horizontal Grinder Wood Chipper
Application
Recycling Bioamass Waste
Cutter Type
Blade or Hammer
Feed Conveyor
Chain Conveyor
Principle
Roller Culling
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
Technical Support Through Life Span of The Machine
Warranty
1 Year
Transport Package
FCL
Specification
ISO CE
Trademark
HX
Origin
Shandong, China
HS Code
8465990000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
1000.00cm * 264.00cm * 340.00cm
Package Gross Weight
21000.000kg
Product Description

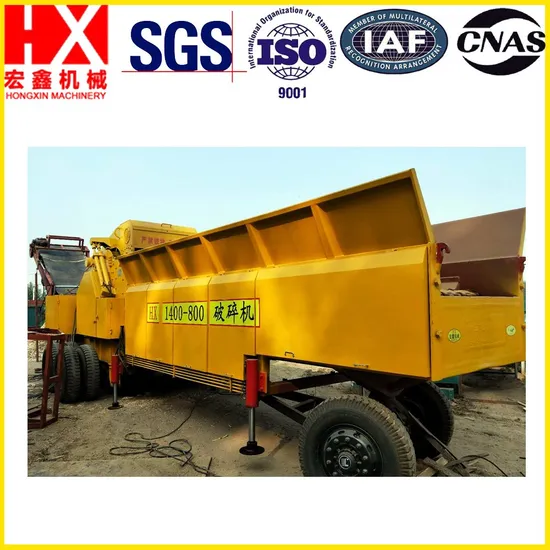

Product Description HX horizontal grinder is a dedicated equipment for biomass power plant for fuel reserve and MDF plant. Raw materials mainly consist of all kinds of trees, undersized log, timber felling residues (such as branch, twig, etc.), wood pallet, wood building template, and wood processing residues ( such as slab, batten, log core, building templates, etc.) and non-wood raw materials (such as waste of flax, reed, bamboo ,maize straw, cotton stalk, etc.).Based on our company's decades of experience in manufacturing of drum wood chipper, the machine is elaborately designed according to raw materials characteristics and end users' requirement for material particle size,and has the feature of wide raw material adaptability, high production capacity, reasonable structure, easy operation, high safety and reliability, easy maintenance etc. Besides, we has got many patents for core components. It's the most ideal biomass crusher worldwide at present.
Product Parameters
| Model | HX1260-500 | HX1400-500 |
| Rotor diameter (mm) | 800 | 800 |
| Cutter quantity (piece) | 8 or 24 | 8 or 28 |
| Input size (mm) | 1250-500 | 1400-500 |
| Rotor rotation speed (rpm) | 650 | 760 |
| Max material diameter (mm) | 300 | 300 |
| Production capacity (tph) | 12-15 | 15-20 |
| Main motor power (kw) | 160 | 200 |
| Chain feed conveyor length (m) | 5 | 5 |
| Discharge conveyor length(m) | 10 | 10 |
| Weight (t) | 14 | 16 |
| Dimension (m) | 8.1 x 2.2 x 2.6 | 8.5 x 2.5 x 2.7 |
| Model | HX1400-800 | HX1600-600 | HX1600-800 | HX2000-1000 |
| Rotor diameter (mm) | 1100 | 800 | 1100 | 1400 |
| Cutter quantity (piece) | 8 or 28 | 8 or 30 | 8 or 36 | 6 or 42 |
| Input size (mm) | 1400-800 | 1600-600 | 1600-800 | 2000-1000 |
| Rotor rotation speed (rpm) | 900 | 760 | 900 | 432 |
| Max material diameter (mm) | 400 | 300 | 400 | 500 |
| Production capacity (tph) | 25-30 | 25-30 | 35-40 | 50-70 |
| Main motor power (kw) | 250 | 250 | 315 | 400 |
| Chain feed conveyor length (m) | 6 | 6 | 6 | 8 |
| Discharge conveyor length(m) | 10 | 10 | 10 | 10 |
| Weight (t) | 26 | 23 | 27 | 52 |
| Dimension (m) | 10x2.62x3.4m | 10.5x2.64x3 | 11.03x2.85x3.4 | 13.8x3.28x3.9 |
