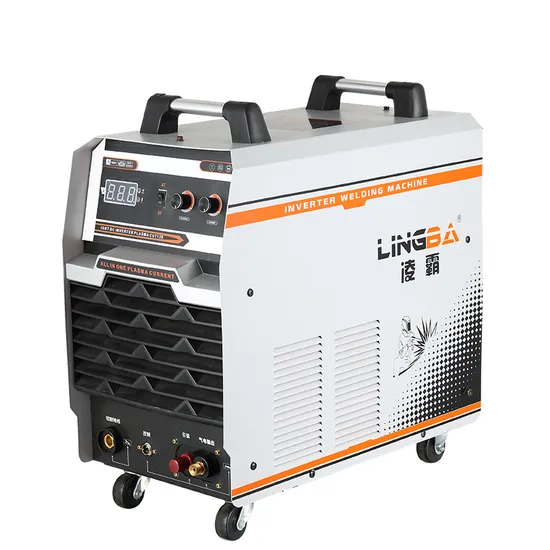

Industrial Air Moudule Cut-120 Plasma Cutter

Product Description

PLASMA CUTTING MACHINE
Feature:
Advanced IGBT Technology design, high inverter frequency, high load sustained rate, energy saving, small size, light weight, easy to carry, especially suitable for outdoor mobile operations, the use of cheap Compressed air cutting gas source, more economical and efficient than flame cutting.
Compared with traditional cutting machine, ARC ignition success rate is high, arc pressure is high, energy concentration, cutting ability, cutting speed, cutting slit narrow, smooth incision, small deformation and so on.
Different thickness of the metal plate can be arbitrary curve cutting, cutting current continuously adjustable. Accurate and intuitive.
Built-in over-heat, over-current, protection , safe operation. Suitable for cutting stainless teel ,cooper,iron and aluminum metal etc.
HF touched ARC-STARTTING (CUT-30 40 60)
HF untouched ARC-STRATTING (CUT-80 100 120 160)
Parameters

	CUT-80	CUT-100	CUT-120	CUT-160
Input voltage (V)	380	380	380	380
Rated input power capacity (KVA)	12	15	19	29
No-load voltage (V)	270	270	270	270
Adjustable output current range(A)	15-80	15-100	15-120	15-160
Rated output power voltage (V)	112	120	104	104
Load duration rate (%)	60	60	60	60
No-load loss (W)	40	50	60	60
Efficiency (%)	85	85	85	85
COS power factor (COSΦ)	0.93	0.93	0.93	0.93
Class of insulation	F	F	F	F
Weight (KG)	12	12	16	16
Dimension (MM)	520*260*480	550*270*560	550*270*560	550*270*560
Shell protection class	IP21	IP21	IP21	IP21
Thrust adjusting range (A)	/	/	/
