Water Juice Soda Water Bottles Manufacturing Machines

Product Description

Product description:

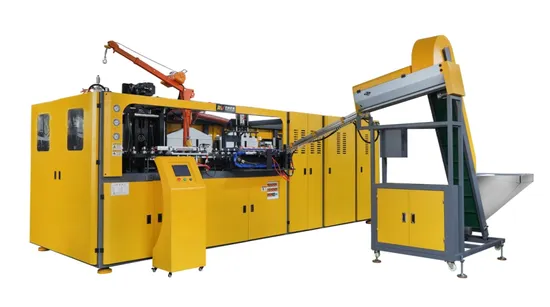

L series is the most stable two-step fully-automatic pet stretch-blow molding machines(reheat). It has 2 to 8 cavities and the maximum capacity of the products is 2L. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1).High Automatization
2).High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3).High Quality: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed: 4800-5200BPH(4-cavity), 9000-9200BPH(6-cavity)
5).No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost: Low consumption of electricity, air and water.
7).High Transparency: Easy maintenance, absolute safety, visual inspection, low noise.
Machine Features
C.1. Stable performance with advanced PLC.
C.2. Conveying preforms automatically with conveyor.
C.3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
C.4. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
C.5. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
C.6. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
C.7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
C.8. Strong clamping force with high pressure and double crank links to lock the mold.
C.9. Two ways of operating: automatic and manual.
C.10. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
C.11. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
C.12. Contamination is avoided for the bottle body.
C.13. Ideal effect of the chilling with the chilling system.
C.14. Easy installation and starting
C.15. Low rejection rate: less than 0.2 percent.
Parameters:

Model		Unit	-6000B
Clamping System	Cavity Quantity	cavities	6
	Clamping Force	KG	65000
	Mold Stroke	mm	125
	Stretching Rod Stroke	mm	330
	Stretching Rod Dia.	mm	12
	Bottom Mould Stroke	mm	50
	Pitch Distance	mm	114.3
	Preform Holder Quantity	PCS	106
Container Spec.	Max.Container Volume	ml	2000
	Max.Container Height	mm	350
	Max.Container Diameter	mm	105
	Max Preform Height	mm	140
	Max.Neck Diameter	mm	38
Output		BPH	6000-6500
Electrical System	Heating Oven Quantity	Zone	6
	Number of Lamp	PCS	6*8
	Heating Power	KW	96
	Installed Power	KW	100
	Voltage	Voltage	Customized
	Actual Power	KW	45-50
Air System	Operating Pressure	Mpa	0.7-0.9
	Blowing Pressure	Mpa	2.5-3.0
	High Pressure Air Consumption	L/min	7.2/30
Chiller System	Temperature Range	Degree	9-13
	Pressure	Mpa	0.4
	Capacity	HP	10
Machine	Machine Dimension	M	5.8*2.1*2.2
	Machine Weight	KG	7000

E:Configuration List

Name	Origin	Brand
Inductive Sensor	Japan	Omron
Magnetic Sensor	China	Segula
Proximity Sensor	China	Segula
Power Switch	France	Schnei-der
Breaker	France	Schnei-der
Intermediary Relay 24V	France	Schnei-der
AC Contactor 220V	France	Schnei-der
Magneticelectrical valve	Germany	Fes-to
Touchscreen(PLC)	Taiwan	Mistubishi
24V Power Box	Taiwan	Delta
Servo Motor and Servo Drive	China	Mistubishi
Heating Lamp	China	Jieneng
Motor in Preform elevator and unscrambler	China	Taili
Adjustable Voltage Module	China	Aoyi
Temperature Regulator	China	Yatai
Throttling Valve	Taiwan	Airtac
Movement Valve	Taiwan	Airtac
Stretching Cylinder	Japan	SMC
Clamping Cylinder	Japan	SMC
Combination Valve	Taiwan	Airtac
Mute	USA	Yawei
Rail	Taiwan	PML
Seal for Pressure Increase	USA	Yawei
Cylinder for Pushing Preform	Japan	SMC
Cylinder in robot for evelating preform	Japan	SMC
Cylinder in robot for preform transfer	Japan	SMC
Preform Rotary Cylinder in Robot	Japan	SMC
Cylinder for Robot Clip	Taiwan	Mindman
Sealing Cylinder	Taiwan	Lind

F.Each Machine One Year Free Charge Spare Parts List

No	Item	Qty
1	Infrared lamp	10pcs
2	Stretch cylinder sealer	4pc
3	HP Air pipe	10m
4	LP Air pipe	10m
5	Sealing cylinder seals	4pcs
6	24V magnet valve coil	2pcs
7	Robot clip	4 PAIRS
8	Magnetic switch	1pc
9	Preform holder	4SETS
10	Approximity Sensor	1pc
11	High pressure reducer valve	1pc
12	Low Pressure Air Pipe	15m
13	Air Connector	20pcs
14	Instruction	1pc
15	Anti-rust painting	1bottle
16	Temperature controller module	1pc
17	relay 24V	1set
18	Tool box	1set
19	Inner hexagon spanner(4,6,8,10,12)	1set
20	Solid wrench(8,10,12,13)	1pc for each
21	Slot type screwdriver(3inch, 4inch)	1pc for each
22	Phillipe screwdriver(3inch, 4inch)	1pc for each
23	Machine foot M16	6pcs

G.Other Terms and Conditions
i) Delivery: Within 60 days from the date of receipt of 30% downpayment
ii) Origin: P.R. China.
iii) Payment: 30% by T/T in advance 70% before delivery by T/T.
v) Insurance: To be covered by buyer.
vi)Validity: 4 weeks from the date of issue of this offer.
vii) Packing: Export standard seaworthy Packing.
viii) Installation: Our engineer will travel to buyer's country within 10-20 days after receipt of confirmation in the written form from client informing that the goods arrived in site and civil works is ready for installation. The client has to buy round tickets and arrange all local facilities including food, lodging, and transportation during their staying period in buyer's country. The buyer would pay USD 100/day for each engineer during journey.
ix) Warranty: One year from the date of Installation or acceptance of the Plant whichever comes first. We guarantee the ordered machines and mould for 12 months if normally run and maintained.During 12 months warranty,if mold and machine are normally run and maintained,but goes wrong,we will solve all the problems at our own expense. Usually,we will send pictures,videos or emails to solve the problems in the beginning.If all fail,we will fly to your factory to solve the problem at our own expense,including flight,spare parts and so on if mould or machine go wrong on the condtion of normal running and maintenance within 12 month after delivery date.
Note: If the client needs us to provide the training program depending on the experience of the local people and the client requirement as the local people has no experience in this kind of plant, the client has to send their people (about 2 technical engineers/workers) to China to receive the training in their factories. The training time will be 12-15 days.The travel and hotel cost of buyer's engineer should be paid by the buyer.No need for the buyer to pay his engineer's food and training cost in our company.
