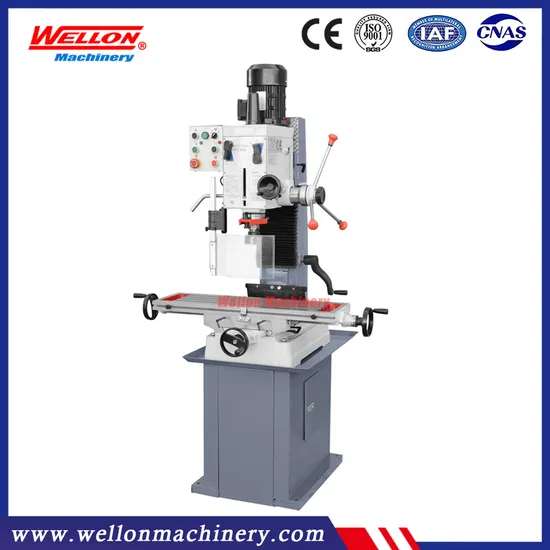

Mini Type Driling Milling Machine ZAY7045FG/1 Mini Drilling Milling Machine Price

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed.
And cyclic change of feeding speed.
Milling, drilling, boring, reaming and tapping.
Head swivels 90 vertical.
Micro feed precision.
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Technical parameter:

ITEM	ZAY7045FG/1
Drilling capacity	45mm
Max.boring diameter	70mm
Max Face mill capacity	80mm
Max End mill capacity	32mm
Max distance from spindle nose to table	450mm
Min distance from spindle axis to column	260mm
Spindle travel	130mm
Spindle taper	M.T.4 or R8
Step of spindle speed	6
Range of spindle speed 50Hz	80-1250 r.p.m
60Hz	95-1500 r.p.m
Auto-feeding step of spindle	6
Auto-feeding amount of spindle	0.06-0.30mm/r
Swivel angle of headstock (perpendicular)	±90°
Table size	800×240mm
Forward and backward travel of table	175mm
Left and right travel of table	500mm
Motor Power	1.5KW(2HP)
Net/Gross weight	325kg/375kg
Packing size	770×880×1160mm

Standard accessories:
Allen srench
Wedge
Tie rod
Optional accessories:
Drill chuck
Milling cutter holder
Mill chuck
Power feed attachment
Auto-tapping electrical
Parallel vise
Working lamp
Coolant system
Machine stand and chip tray
Clamping kits
Digital readout
