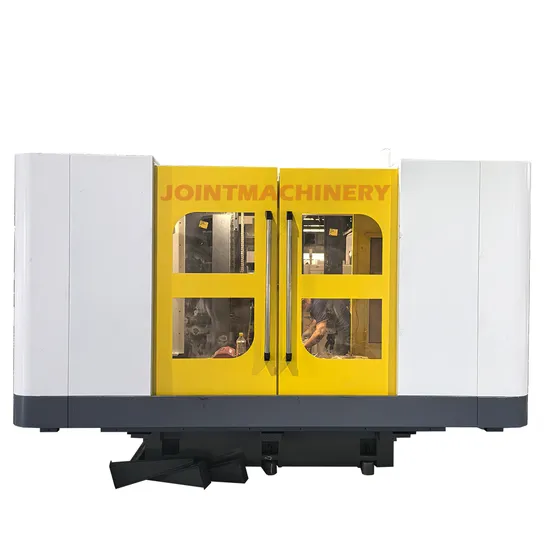

Professional Metal Gun Drilling Equipment CNC Deep Hole Drilling Machine

Product Description

Drilling is the cornerstone of machining operations and boasts widespread application across various fields. Traditional drilling equipment such as bench drills, milling machines, and radial drills often tie laborers to repetitive tasks without ensuring optimal quality. The constraints of security, efficiency, and processing capabilities have posed challenges to manufacturers and operators alike. However, with the emergence of the CNC era, the revolutionary CNC depth drill has completely transformed this landscape. This innovation liberates workers from manual repetition, addresses the bottleneck of depth drilling processes, and allows a single drilling operation to achieve the superior quality of conventional machines. It seamlessly integrates automatic chip removal, CNC positioning, and automated processing, paving the way for enhanced productivity and precision.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

Our company's precision CNC deep hole drilling machine is expertly designed to handle a wide variety of workpieces, ensuring impeccable results for deep hole processing:
√ Die & Mould Industry: Perfect for water transport holes, center holes, hot runners, guide roller holes, and more.
√ Auto Industry: An essential tool for deep hole processing in cylinder heads, crankshafts, hydraulic tubing, plunger bushings, and beyond.
√ Oil Pump & Lubricating Nipple Industry: Ideal for deep hole drilling in oil-injection gas components, nozzle valves, plunger bushings, and various other parts.
√ Textile Machinery Industry: Specially crafted for precise mesopore processing of various spindles.
√ Medical Equipment Industry: Capable of axial processing in high-grade materials like titanium alloy and stainless steel.
√ Mine & Oil Machinery: Perfect for deep hole processing on piston rods and cylinder walls.
√ Electrical Power and Steam Turbine Industry: Handles deep hole processing of rotors, central spindles, valve spindles, unit outer cylinders, and condenser tube plates effortlessly.
Professional Metal Gun Drilling Equipment CNC Deep Hole Drilling Machine

Model	Unit	DH-2216
Inner diameter of drilling	mm	2.5-35
Max depth of drilling	mm	1600
Table size	mm	2200*1350
X axis travel	mm	2000
Y axis travel	mm	1300
Z axis travel	mm	1600
Cutting feeding	mm/min	1-300
Max rotary speed of spindle	rpm	7000
Spindle motor	kw	11/15
Three axis motor	kw	4.4/4.4/2.3
Pressure of oil pump	kg/cm	0-150
Capacity of cutting tank	L	800
Max load weight of table	kg	16000
Weight	kg	16000
Dimension	mm	6000*5200*3000

Shenzhen Joint Machinery Co., Ltd. stands as a distinguished professional manufacturer and exporter of CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes, among others. Our commitment is unwavering in delivering top-tier quality machines paired with exceptional service to our esteemed global clientele. We are dedicated to maintaining and enhancing the quality of our machinery to meet the pinnacle of industry standards. Integrating cutting-edge technologies from Taiwan and Germany, and leveraging advanced production equipment and processes, our products embody superior quality and reliability. Known for their exceptional performance in precision, stability, and dependability, our machines adeptly fulfill various complex and demanding machining requirements. Exported worldwide, our products have garnered widespread acclaim and popularity, establishing a formidable market presence in Asia, Europe, South America, North America, and beyond. In partnership with diverse global customers, we cultivate long-term relationships, creating substantial business value together.
