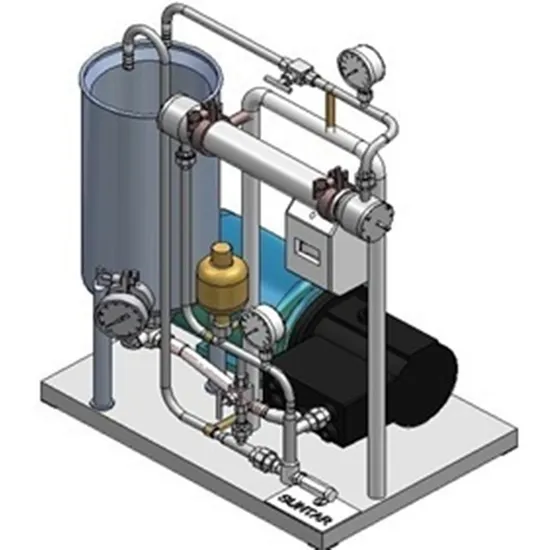

Spiral Wound Membrane Filtration Plant for Lab Scale

Product Description

Suntar trial plant is specially designed for universities, scientific research institutions and enterprise R&D centers. It can help customers obtain key process parameters and corresponding cleaning schemes through experiments, providing references for scientific research and industrial applications, and can also be used as small production equipment for small batch production.
For more than 20 years, Suntar's experimental equipment has been used in many universities, scientific research institutions, national key laboratories and corporate R&D centers in China and the Asia-Pacific region, and has a wide reputation and a good market reputation.
Features: Compact design, small circulation volume; Easy operation and maintenance; Stable performance, easy to clean Reliable test result, as a reference for commercial scale; Wide pressure range up to 40bar, suitable for UF, NF and RO test. Variety of membrane available Specification

Model	SPPM-18S-1
Membrane size	1812
Membrane area(m2)	0.24
Maximum operating pressure(bar)	40
Operation temperature (ºC)	10-45
PH range	2-11
Minimum circulation volume (L)	1
Total power (kw)	1.5
Dimension (m)	0.68×0.4×0.85

Application Decolorization, protein removal, Concentration and desalination; Sugar, alcohol separated and purified; Juice and beverage clarification and concentration; Purification of plant extract; Desalination and concentration of dye Mother liquid recovery Wastewater treatment and effluent reclamation; Different quality water supplied by Nanofiltration; Others filtration and separation.
