Railroad Track Maintanace Equipment Laying Machine Railway Undercutter with Sleeper Auto-Change

Product Description

15Ton Rail Tamping Railroad Tamping Machine Excavator is suitable for the tamping operation after the large and medium repairing and screening operations of different types of rails and concrete sleeper lines at home and abroad, and it is also suitable for the tamping operation of the ballast of the newly-built track bed. It has the characteristics of superior performance, reasonable structure, safety and reliability, and high operating efficiency, which meets the needs of railway ballast tamping operations.
Benefit & Features

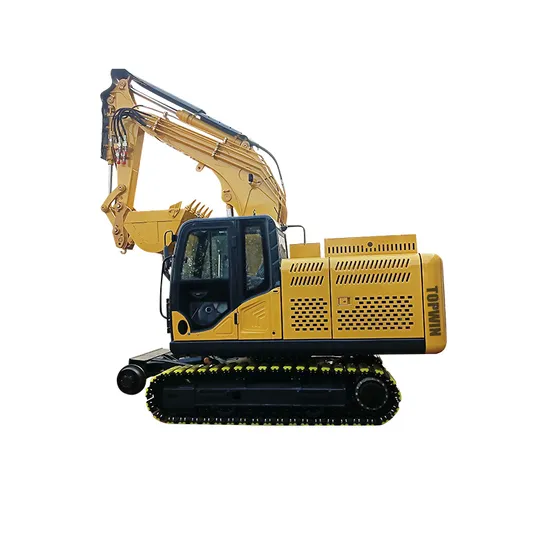

TOPWIN E150 excavator is designed to help you work efficiently while maximizing your jobsite productivity. The 15t excavator has many features to help operators achieve the balance of power, smoothness, fuel efficiency and speed.
In-Cab Color Monitor Intuitive, quick communication of key operating parameters. Ability to easily see information about machine set-up and performance. Multiple Working Modes Allow the machine to be easily set up for the job and application at hand. Reliable First-Class Components Guarantee easiest and most versatile operation in every working environment. Undercarriage Components High quality and durable undercarriage for long life and resistance to wear.
1. Imported hydraulic gadget with twin pump and twin circuit, secure work performance, quick speed.
2. Guarantee for two yrs underneath everyday use and maintenance
3. Imported hydraulic components, Japan made KPM principal pump, Japan made KYB multi-circuit Valve, swing motor,Eaton journey motor, Japan made or South Korea made fuel tank
4. On-line digital monitoring and manage system
5. GPS satellite tv for pc function and far flung diagnose system(optional)
6. Cold&warm air conditioner furnish underneath specific sorts of climate conditions
7. Light and on hand pilot working system
8. Steel pedrail

MODEL	E150R
Operating weight (T)	14.5
Engine	Mitsubishi
Rated power (kw)	120
Overall length (mm)	6700
Overall width (mm)	2250
Overall height (to top of cab)(mm)	2750
Counterweight ground clearance (mm)	760
guide wheel ground clearance (mm)	350
Tail swing radius (mm)	1800
grounding length (mm)	2150
Track length (mm)	2760
Max. Gradeability on road (%)	35
Max. Gradeability on rails (%)	30
Emergency power (kW)	12
Max. Traveling speed on rails(km/h)	20
Ballast cutter attachment specs
Effective cutting length	3100mm
Max. ballast lifting height	1000mm
Chain rotation speed (linear speed)	3.2m/s
Chain lifting speed (linear speed)	3.6 m/s
Excavating motor rated pressure	33 MPa
Overall machine weight	2ton
Cut-in method	Side cutting
Rotation angle	360°

Product Description

1.120 excavator Yanmar engine Euro III,
2.110kW InLine brand hydraulics
3.Enclosed cabin Standard bucket
4. capacity: 0.22m³
5.Operating weight:12000kg
6.With broken pipeline system
7.Mechanical driving system
8.wih dozer blade
9.with outrigger
Excavator Main features: 1) High efficiency and low fuel consumption.
2) Imported hydraulic components with excellent operability, flexible action, and precise operation.
3) Adapting to various working conditions like hills and muddy areas.
4) Short turning radius, variable amplitude chassis, deflection, suitable for narrow space operations.
5) Multi-purpose such as: Excavation, crushing, bulldozing, drilling, grabbing.
Excavator attachments:
A tool for every job
Buckets - General Purpose Buckets - Ribbed Buckets - Ditch Maintenance Grading Buckets Buckets - Tapered Ditching Tilting Grading Bucket
Jack Hammer Or Breaking Hammer Or Breakers,
Quick Hitches,
Auger Or Earth Drill,
Thumb Bucket,
Sweeper,
Log/stone/steel Grapple,
Ripper tooth,
Rake,
Hand Held Tools,
Compactor,
Rock whee,
Extending dippers,
Hydraulic pulverizer,
Pile hammer,


Certifications
Customer Reviews
Product Details
Excavator configurations. :
Packaging & Shipping
Company Profile

Shandong Topwin Machinery Co.,Ltd. (TOPWIN for short) is the one-stop solution provider for construction machinery, mining machinery, agricultural machinery and logistic machinery in China.
With more than 10 years experience in this field, TOPWIN has served various clients from USA, Canada, Mexico, Brazil, Argentina, Australia, Indonesia, Kazakhstan, Russia, Zimbabwe, Mozambique, Zambia, South Africa, etc.. We are helping our clients to succeed in every project by offering high cost-effective and reliable machines.
TOPWIN has enjoyed great reputations in road constructions, mining operations, farming, fertilizer manufacturing, etc.. That's why we get repeat purchases and more new clients from different countries and regions.
TOPWIN values high quality products and immediate response to clients' demand. We know how important it is for client to have a product that not only keeps on doing its job throughout the day, but also keeps on doing so for many years.
We offer full guidance to service and maintenance to make sure the machines are running normally with maximum productivity. To achieve that, we provide the clients with full support from day one.
FAQQ: Why TOPWIN?
A: With 10 years' exporting experience,TOPWIN has been a well known brand in the market, now you can see TOPWIN machines in more than 30 countries.
What we can provide:
Quality machines.
More competitive prices.
More timely and effective service.
Q: Can I test the machine before order?
A: Yes, we have dealers in Brazil, Australia, Slovenia, Sweden, Croatia, Poland, Serbia, Zambia, Mozambique, South Africa, Syria, etc. Please tell me your detailed address, then I would like to recommend the closest customer for you, then you could go to test.
Q: What is your delivery time?
A: The delivery time is around 20 working days. In peak season, the production time would take longer.
Q: What is the payment term?
A: Normally we accept 30% deposit by TT for production, 70% balance by TT before shipping. Or by sight LC.
Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color according to your color number.
Q: Can I see the production progress after order?
A: Yes, during production, we can have video call and we could take photos/videos for your reference.
Q: What kind of service can I get from you if I buy? How can I get parts?
A: We have 1 year warranty for each machine.Within 1 year warranty, if any parts failure caused by quality issues, the new parts would be sent to you free of charge within 5 working days. We have professional after sales department to support for you at any time.
