PP/PE Water-Ring-Cutting Pelletizing Production Line
| US$40,000.00-70,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
pellet-SHQ
Material Processed
Granues
Plastic Type
PVC
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
CE
Item
PP/PE Water-Ring-Cutting Pellets Production Line
Voltage
3 Phase 380V 50Hz or as Requested
Delivery Time
30-50 Working Days
Color
Grey or as Requested
Capacity
120-500 Kg/H
Feeding Material
PVC Powder
Final Product
PVC Granules
Cutting Type
Water-Ring-Cutting Cut-in-Water
Pellets Size
3mm-8mm Diameter
Transport Package
Wooden Case
Specification
International Standard
Trademark
chenxing
Origin
Zhangjiagang of Jiangsu
HS Code
84779000
Production Capacity
300sets/Year
Product Description
PP/PE water-ring-cutting pelletizing line/ PP PE Pelletizing Line /SJ120+SJ120 two stage water cooling pelletizing line
1. optional extruder: SJ75, SJ90, SJ120,SJ150
2. water-ring-cutting mould : 11-18pcs
3. Capacity: 80-300-500kg/h

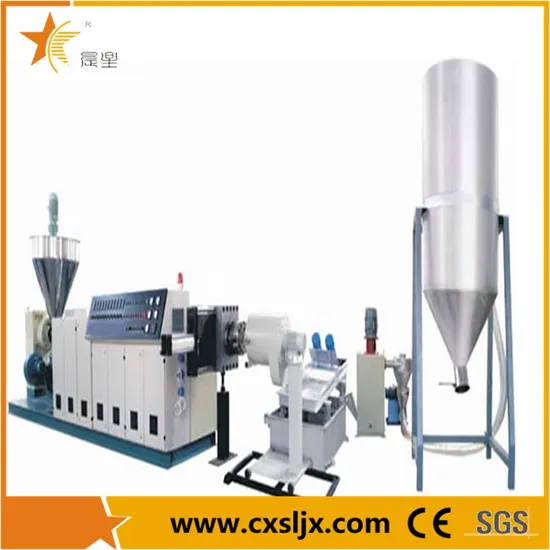

PE Film Pelletizing Line mainly composed the machines as below:
1- Screw Conveyor
2- Main Single-screw Extruder (Second single screw extruder)
3- Hydraulic-change net & station
4- water-ring-cutting mould, 11pcs-18pcs
5- Water Tank
6- dewatering machine
7. Dryer System and silo
| MACHINE LIST | ||||
| 1 | SCREW LOADER | |||
| 2 | SJ75 /SJ75+SJ75 | SJ90/ SJ90+SJ90 | SJ120 / SJ120+SJ120 | SJ150 / SJ150+SJ150 |
| 3 | hydraulic net exchanger(optional) | |||
| 4 | water-ring-cutting mould | |||
| 5 | water tank | |||
| 6 | dewatering machine | |||
| 7 | air blower and silo | |||
| capacity | 120kg/h | 150-200 kg/h | 250-320 kg/h | 450-500/500-600 kg/h |
