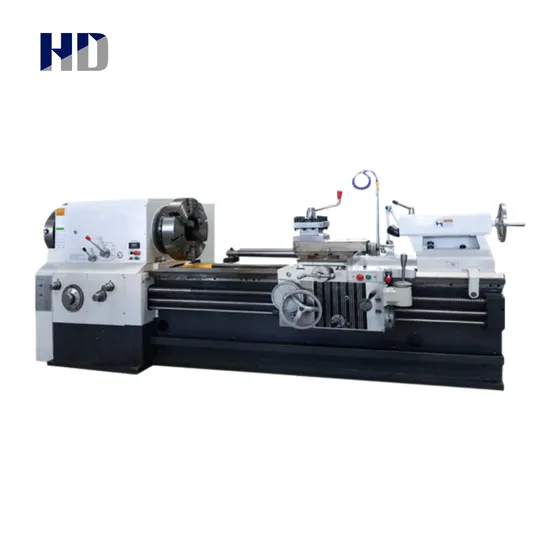

Q1313 Chinese Horizontal Manual Metal Pipe Thread Lathe
Basic Info.
Model NO.
Q1313
Type
Horizontal Lathe
Processing Accessory
Other
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Over Bed Dia.
630mm
Max. Swing Over Cross Slide Dia.
340mm
Max. Length of Workpiece
1500/3000mm
Width of Bed
550mm
Spindle Bore
135mm
Power of Spindle Motor
11kw
Spindle Speed
Fwd 18 Steps , 12-642r/Min
Z Axis Feed Range
26/0.07-1.33mm/R
X Axis Feed Range
22/0.02-0.45mm/R
Cariage Rapid Traverse Speed
4000mm/Min
Cross Slide Rapid Traverse Speed
2300mm/Min
Metric Thread Range
52/1-224mm
Inch Thread Range
40/2-28t.P.I
Traverse of Cross Slide
320mm
Max. Traverse of Turret
200mm
Transport Package
Wooden Cases
Specification
3657*1360*1480mm
Trademark
HAIDI
Origin
China
HS Code
8458990000
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
396.00cm * 166.00cm * 178.00cm
Package Gross Weight
46200.000kg
Product Description
Product PictureSpecification Parameter
| Specification | Unit | Q1313 | Q1319 | Q1322 |
| Max. swing over bed dia. | mm | 630 | 630 | 670 |
| Max. swing over cross slide dia. | mm | 340 | 340 | 380 |
| Max. length of workpiece | mm | 1500/3000 | ||
| Width of bed | mm | 550 | ||
| Spindle bore | mm | 135 | 200 | 225 |
| Power of spindle motor | kw | 11 | ||
| Spindle speed | r/min | FWD 18 steps , 12-642 | FWD12 steps, 36-380 | FWD12 steps, 36-380 |
| Z axis feed range | mm/r | 26/0.07-1.33 | 26/0.07-1.33 | 26/0.07-1.33 |
| X axis feed range | mm/r | 22/0.02-0.45 | 22/0.02-0.45 | 22/0.02-0.45 |
| Cariage rapid traverse speed | mm/min | 4000 | ||
| Cross slide rapid traverse speed | mm/min | 2300 | ||
| Metric thread range | mm | 52/1-224 | 24/1-14 | 24/1-14 |
| Inch thread range | T.P.I | 40/2-28 | 40/2-28 | 40/2-28 |
| Traverse of cross slide | mm | 320 | ||
| Max. traverse of turret | mm | 200 | ||
| Tailstock quill travel | mm | 205 | ||
| Tailstock quill dia. | mm | Φ100 / Morse 5 | ||
| Chuck | mm | Φ380 3 jaw manual | Φ520 four jaw manual | |
| Overall dimension | mm | 3657*1360*1480 | 3657*1360*1555 | 3657*1449*1480 |
| Net weight | T | 4.2 | 4.5 | 4.8 |
