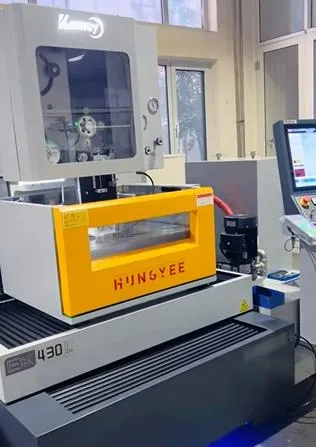

Lower Speed (<0.2m/s) Wire Electrical Discharge Machining, EDM Machine, High-End Wire Cutting Machine

Product Description

Company Profile Company Introduction:
You-May Technology has been a long journey of developing discharge spark machines, spark-erosion drilling machine and wire-cut machines... Finally,we have honed our skills and accumulated outstanding talents from CHMER,Japan and Europe industries, as well as exquisite technology. The independently developed HUNGYEE 8.0 controller system achieved satisfactory results in the first phase.
In 202l, we oficially put into production and listed again, and successively launched the CK series, EK series, and U series Wire Electric Discharge machines, which won unanimous praise and favor from new and old customers. Customer-centric, touching customers, protecting employees, and sustainable operation, in the future, our team will continue to develop more series of "stable, precise, efficient, and energy-saving" cost-effective Wire Electric Discharge machines that meet market demand and market them in the international market.
Product Description
Product Parameters

Project	Unit	EK430F	EK430S	EK430L
Axis Travel (X,Y,Z)	mm	400×300×220
Axis Travel (U,V)	mm	60×60
Max.Size of Workpiece (W,D,H)	mm	725×600×215
Max.Weight of Workpiece	kg	500	350
X.Y Feed Rate	mm/min	Max. 800	Max. 1800
Axis Drive System	asis	X,Y,U,V,Z axis AC servo motor	X,Y axis linear motor/U,V,Z axis AC servo motor
Wire Diameter Range	mm	Φ0.15-0.3(0.25)
Wire Tension	gf	300-2500
Taper Angle	-	±14.5°/80mm(wide-anhled nozzle,DA+DB=15mm)
Machine Weight	kg	2600	2850
Processing Fluid Power System Device
Filtering Capacity	L	340	650
Filtering Method	-	paper web
Water Quality Control	-	Auto
Fluid Temperature Control	-	Auto
Processing Power Supply
Loop Method	-	Power MOS Transistor
Max. Output Current	A	25
Setting Unit	mm	0.001
Max. Command Value	mm	±9999.999
Appearance Configuration (W,D,H)	mm	2203×2015×2435
Input Power Supply		3 phase 220V±5% 50/60Hz ±1Hz

Optional Accessories:
1,AWT Automatic Threading Device US $5,400.00;
2,Submirror function US $2,600.00.
Applications
Packaging & Shipping
FAQ Pre-Sales service
Inquiry and consulting support.
Sample testing support.
24 hours on line anwser your confusion.
Welcome to view our factory
Take video as client's request.
After-Sales service
We will adjust the machine to fit for your products before delivery.
We provide useful instructions of the machine.
Training how to instal the machine,training how to use the machine.
Q: Are you a trading company or a manufactory?
A: We are Integration of industry, trade, and technology, we supply the factory price with good quality, welcome to visit !
Q: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q: When can I get my machine after I paid?
A: The delivet time is based on the exact machine you confirmed.
Q: How do you offer technical support?
A: 1.Technical support by phone, email,WhatsAPP or Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas
Q:How do you work your after sales service?
A:Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
And You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/tel and lifetime technical support.
Q: How about the spare parts?
A: After we deal down all the things , we will offer you a spare parts list for your reference.
Q: What is your delivery terms?
A: We support:FOB,CFR,CIF,EXW, DDP,DDU
Q: What is the payment terms?
A: Our normal payment terms is 30%TT in advance, the balance 70%TT before shipping.
