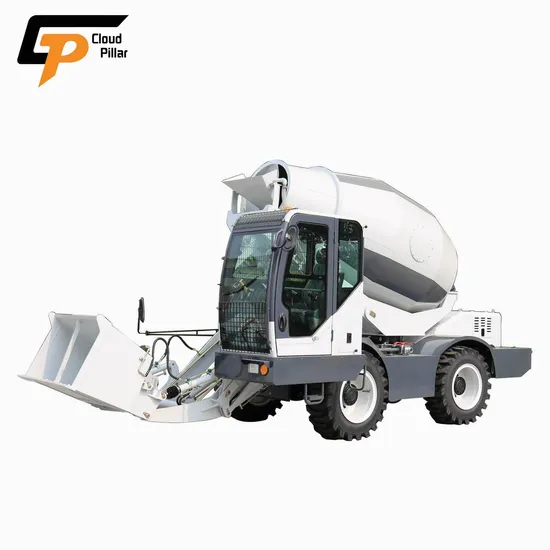

Chinese Buy Construction Equipment Diesel 1.5-5.5 Cbm Small Self Loading Concrete Mixer Truck with Pump Machine Price for Sale
| US$22,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CPM5.5
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
35m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Model
Cpm5.5
Gear Number
Three Forwards, Three Backwards
Engine Brand
Yunchai
Fuel Consumption
Idle State 2L-3L, Working State 8L-10L.
Drum Mixing Capacity
5.5cbm
Drum Capacity
6.8m3
Shovel
0.72cbm
Weighing System
Electronic Weighing System
Transport Package
Naked Package
Specification
7820mm x 4750mm x 4400mm
Trademark
CLOUDPILLAR
Origin
China
Production Capacity
3000/Month
Product Description
Product DescriptionDetailed Photos
Product Parameters
| Model | CPM5.5 |
| Type | Integral frame chassis movable, self loading, mixing, transporting |
| Function | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging |
| Productivity | BATCH≤15MINS, 4BATCHS(22CBM)/HOUR |
| Drive | 4 x 4 |
| Steering | Front steering |
| Engine | YUCHAI Engine: Four-Cylinder 2200RPM,110KW |
| Speed | High Speed: 38.5KM/H; Low Speed:7.5KM/H |
| Gear number | Three forwards, three backwards |
| Fuel consumption | Idle state 2L-3L, working state 8L-10L. |
| Tyre | 16/70-24 (Steel wire tyre) |
| Drum | Geometric volume 6.8 cubic meters, the best stirring 4.5-5.5 cubic meters |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right |
Mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle |
| Tipping Chute | Equipped with 2 chute for detachable to increase discharging length |
| Tilt of mixing tank | 16° |
| Shovel | Shovel capacity: 0.72³ |
| Bucket discharge switch | Hydraulic gate, electric control |
| Operation Handle | Electric control button four-way guide handle |
| Moving Hydraulic | Pump:DENGHONG |
| Torque converter(CloudPillar) | |
| Work hydraulic | Pump/valve: DENGHONG |
| Mixing system | Speed Reducer:(CloudPillar) |
| Mixing motor(ZHENJIANG DALI) | |
| Drive axle | LIUFENG |
| Water Supply | Hydraulic driving self-primiing pumps |
| High-Pressure Water Pump Wash | High-pressure water pump wash |
| Weighing system | Electronic weighing system (language optional) |
| Voltage | Battery 24V-100A 2 pieces |
| Hydraulic oil box | Tankage 180L, Summer:NO68 Hydraulic Oil, Winter:NO46 Hydraulic Oil, Very Cold Zone: NO35 Hydraulic Oil, |
| Water tank capacity | 620L |
| Diesel tank capacity | 190L |
| whole weight | Complete vehicle kerb mass 9200KG |
| Cab | Prevent falling objects cab |
| Adjustable steering wheel | |
| Adjustable seat | |
| Seat belts | |
| Fire extinguisher | |
| Astern image | |
| Alarm Lamp | Standard configuration |
| Radio | Standard configuration |
| Cabin A/C | Optional |
| Escape hammer | Standard configuration |
| Astern sound prompt | Standard configuration |
| Walking control mode | Standard configuration:Electric control |
| Model | CPM4.0 | |
| Type | Integral frame chassis movable, self loading, mixing, transporting | |
| Function | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging | |
| Productivity | BATCH≤15MINS, 4BATCHS(16CBM)/HOUR | |
| Drive | 4 x 4 | |
| Steering | Front steering | |
| Engine | YUNNEI Engine: Four-Cylinder 2200RPM,92KW | |
| Speed | High Speed: 36.5KM/H; Low Speed:6.5KM/H, | |
| Gear number | Three forwards, three backwards | |
| Fuel consumption | Idle state 2L-3L, working state 6L-8L. | |
| Tyre | 16/70-20 (Steel wire tyre) | |
| Drum | Geometric volume 5.5 cubic meters, the best stirring 3.5-4 cubic meters | |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right | |
| mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle | |
| Tipping Chute | Equipped with 2 chute for detachable to increase discharging length | |
| Shovel | Shovel capacity: 0.55³ | |
| Bucket discharge switch | Hydraulic gate, electric control | |
| Operation Handle | Electric control button four-way guide handle | |
| Moving Hydraulic | Pump:DENGHONG | |
| Torque converter(CloudPillar) | ||
| Work hydraulic | Pump/valve: DENGHONG | |
| Mixing system | Speed Reducer:(CloudPillar) | |
| Mixing motor(ZHENJIANG DALI) | ||
| Drive axle | LIUFENG | |
| Water Supply | Hydraulic driving self-primiing pumps | |
| High-Pressure Water Pump Wash | High-pressure water pump wash | |
| Weighing system | Electronic weighing system (language optional) | |
| Voltage | Battery 24V-100A 2 pieces | |
| Hydraulic oil box | Tankage 180L, Summer:NO68 Hydraulic Oil, Winter:NO46 Hydraulic Oil, Very Cold Zone: NO35 Hydraulic Oil, | |
| Water tank capacity | 520L | |
| Diesel tank capacity | 180L | |
| Whole weight | Complete vehicle kerb mass 7600kg | |
| Cab | Prevent falling objects cab | |
| Adjustable steering wheel | ||
| Adjustable seat | ||
| Seat belts | ||
| Fire extinguisher | ||
| Astern image | ||
| Alarm Lamp | Standard configuration | |
| Radio | Standard configuration | |
| Cabin A/C | optional | |
| Escape hammer | Standard configuration | |
| Astern sound prompt | Standard configuration | |
| Walking control mode | Standard configuration: Mechanical | Optional:Electric control |
| Model | CPM3.0 | |
| Type | Integral frame chassis movable, self loading, mixing, transporting | |
| Function | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging | |
| Productivity | BATCH≤15MINS, 4BATCHS(12CBM)/HOUR | |
| Drive | 4 x 4 | |
| Steering | Front steering | |
| Engine | YUCHAI Engine: Four-Cylinder 2200RPM,85KW | |
| Speed | High Speed: 36.5KM/H; Low Speed:6.5KM/H, | |
| Gear number | Three forwards, three backwards | |
| Fuel consumption | Idle state 2L-3L, working state 6L-8L. | |
| Tyre | 16/70-20(Steel wire tyre) | |
| Drum | Geometric volume 4.2 cubic meters, the best stirring 2.6-3 cubic meters | |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right | |
| Tilt of mixing tank | 16° | |
| mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle | |
| Tipping Chute | Equipped with 2 chute for detachable to increase discharging length | |
| Shovel | Shovel capacity: 0.35³ | |
| Bucket discharge switch | Hydraulic gate, electric control | |
| Operation Handle | Electric control button four-way guide handle | |
| Moving Hydraulic | Pump:DENGHONG | |
| Torque converter(CloudPillar) | ||
| Work hydraulic | Pump/valve: DENGHONG | |
| Mixing system | Speed Reducer:(CloudPillar) | |
| Mixing motor(ZHENJIANG DALI) | ||
| Drive axle | LIUFENG | |
| Water Supply | Hydraulic driving self-primiing pumps | |
| High-Pressure Water Pump Wash | High-pressure water pump wash | |
| Weighing system | Electronic weighing system (language optional) | |
| Voltage | Battery 24V-100A 2 pieces | |
| Hydraulic oil box | Tankage 180L, Summer:NO68 Hydraulic Oil, Winter:NO46 Hydraulic Oil, Very Cold Zone: NO35 Hydraulic Oil, | |
| Water tank capacity | 370L | |
| Diesel tank capacity | 180L | |
| Whole weight | Complete vehicle kerb mass 6800kg | |
| Cab | Prevent falling objects cab | |
| Adjustable steering wheel | ||
| Adjustable seat | ||
| Seat belts | ||
| Fire extinguisher | ||
| Astern image | ||
| Alarm Lamp | Standard configuration | |
| Radio | Standard configuration | |
| Cabin A/C | Optional | |
| Escape hammer | Standard configuration | |
| Astern sound prompt | Standard configuration | |
| Walking control mode | Standard configuration: Mechanical | Optional:Electric control |
| Model | CPM2.5 | |
| Type | Integral frame chassis movable, self loading, mixing, transporting | |
| Function | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging | |
| Productivity | BATCH≤15MINS, 4BATCHS(10CBM)/HOUR | |
| Drive | 4 x 4 | |
| Steering | Front steering | |
| Engine | YUNNEI Engine: Four-Cylinder 2200RPM,76KW | |
| Speed | High Speed: 32.5KM/H; Low Speed:5.5KM/H | |
| Gear number | Three forwards, three backwards | |
| Fuel consumption | Idle state 1.8L-2L, working state 5L-7L. | |
| Tyre | 23.5-16 (Steel wire tyre) | |
| Drum | Geometric volume 3.6 cubic meters, the best stirring 2.2-2.5 cubic meters | |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right | |
| Tilt of mixing tank | 16° | |
| mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle | |
| Tipping Chute | Equipped with 2 chute for detachable to increase discharging length | |
| Shovel | Shovel capacity: 0.35³ | |
| Bucket discharge switch | Hydraulic gate, electric control | |
| Operation Handle | Electric control button four-way guide handle | |
| Moving Hydraulic | Pump:DENGHONG | |
| Torque converter(CloudPillar) | ||
| Work hydraulic | Pump/valve: DENGHONG | |
| Mixing system | Speed Reducer:(CloudPillar) | |
| Mixing motor(ZHENJIANG DALI) | ||
| Drive axle | LIUFENG | |
| Water Supply | Hydraulic driving self-primiing pumps | |
| High-Pressure Water Pump Wash | High-pressure water pump wash | |
| Weighing system | Electronic weighing system (language optional) | |
| Voltage | Battery 24V-100A 2 pieces | |
| Hydraulic oil box | Tankage 180L, Summer:NO68 Hydraulic Oil, Winter:NO46 Hydraulic Oil, Very Cold Zone: NO35 Hydraulic Oil, | |
| Water tank capacity | 370L | |
| Diesel tank capacity | 180L | |
| Whole weight | Complete vehicle kerb mass 6600kg | |
| Cab | Prevent falling objects cab | |
| Adjustable steering wheel | ||
| Adjustable seat | ||
| Fire extinguisher | ||
| Astern image | ||
| Alarm Lamp | Standard configuration | |
| Radio | Standard configuration | |
| Cab A/C | optional | |
| Escape hammer | Standard configuration | |
| Astern sound prompt | Standard configuration | |
| Walking control mode | Standard configuration: Mechanical | Optional:Electric control |
| Model | CPM1.5 | |
| Type | Integral frame chassis movable, self loading, mixing, transporting | |
| Function | concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging | |
| Productivity | BATCH≤15MINS, 4BATCHS(6CBM)/HOUR | |
| Drive | 4 x 4 | |
| Steering | Front steering | |
| Engine | YUNNEI Engine: Four-Cylinder 2200RPM,58KW | |
| Speed | High Speed: 30KM/H; Low Speed:4KM/H | |
| Gear number | Three forwards, three backwards | |
| Fuel consumption | Idle state 1-1.8L, working state 4L-6L. | |
| Tyre | 23.5-16 (Steel wire tyre) | |
| Drum | Geometric volume 2.2 cubic meters, the best stirring 1.2-1.5 cubic meters | |
| Spiral blade in tank | Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right | |
| Tilt of mixing tank | 16° | |
| mixing tank 270°discharges | The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle | |
| Tipping Chute | Equipped with 2 chute for detachable to increase discharging length | |
| Shovel | Shovel capacity: 0.35³ | |
| Bucket discharge switch | Hydraulic gate, electric control | |
| Operation Handle | Electric control button four-way guide handle | |
| Moving Hydraulic | Pump:DENGHONG | |
| Torque converter(CloudPillar) | ||
| Work hydraulic | Pump/valve: DENGHONG | |
| Mixing system | Speed Reducer:(CloudPillar) | |
| Mixing motor(ZHENJIANG DALI) | ||
| Drive axle | LIUFENG | |
| Water Supply | Hydraulic driving self-primiing pumps | |
| High-Pressure Water Pump Wash | High-pressure water pump wash | |
| Weighing system | Electronic weighing system (language optional) | |
| Voltage | Battery 24V-100A 2 pieces | |
| Hydraulic oil box | Tankage 110L, Summer:NO68 Hydraulic Oil, Winter:NO46 Hydraulic Oil, Very Cold Zone: NO35 Hydraulic Oil, | |
| Water tank capacity | 240L | |
| Diesel tank capacity | 110L | |
| Whole weight | Complete vehicle kerb mass 5600kg | |
| Cab | Prevent falling objects cab | |
| Adjustable steering wheel | ||
| Adjustable seat | ||
| Fire extinguisher | ||
| Astern image | ||
| Alarm Lamp | Standard configuration | |
| Radio | Standard configuration | |
| Cab A/C | Optional | |
| Escape hammer | Standard configuration | |
| Astern sound prompt | Standard configuration | |
| Walking control mode | Standard configuration: Mechanical | Optional:Electric control |
Certifications
Packaging & Shipping
1 unit in a 40' container
Company Profile
Our Advantages
After Sales Service
>> Outdoor Team Building Game Inflatable Floating Ball Sports Games Inflatable Thunder Drum
>> Durable PVC Inflatable Jumping Jumper Buncer Toy
>> High quality 5 mm thick flexible rod solid pom plastic rod
>> Auto Spare Body Parts Car Rear Door Panel For Haima S5 2014
>> New Custom Student Notepads Sticky Book Printing Notes for School Supplies
>> Custom 3D Flower Multic Color Rose for Wall Painting Decoration
>> Agricultural Machinery Tractor Mounted Paddy Field Beater Rotavator/Rotary Tiller Pasddy Field Beater
>> Sf6 Gas Density Relay Calibration Tester Automatic Sulfur Hexafluoride Calibrator
>> Custom Quality Embroidery Logo Curved Brim 5 Panel Structured Outdoor Cap
>> Car Flooring Wholesale Auto Accessories Honeycomb Design Carpet EVA Sheet Mat
>> Kotex Ultra Thin Regular Sanitary Napkin Pads Machine
>> Travel Cosmetic Bag Portable Cosmetic Bag
>> R410 18000BTU SAA CB ROHS SASO Approval 1.5 Ton 2P Split Inverter AC Price
>> Easy to Operate Automatic High Accuracy Weighing Down and Cotton Filling Machine with Big Grams and Single Side (RM2-8D)
>> 1220X2440mm Waterproof WBP Glue Construction Formwork Hardwood Marine Film Faced Plywood
>> Highly Affordable Elegance Resin Valley Chiavari Chairs Factory Exporting Wedding Banquet Chair
>> Keyboard Keypad of Fuel Dispenser in Filling Station and Gas Station
>> Dual Head Sheet and Tube Fiber Laser Cutting Machine Laser Cutting Machine
>> 27358 Polyester Forming Screen Paper Machine Mesh Belt for Pulp Boards Making
>> China Bedroom Webber Accessory for Mobile Pedestal Wood Filing Cabinet
>> High Quality Pond Lake Cutting Weeds Collecting Rubbish Cleaning Boat Machine
>> Auto parts Oil pump for Chevrolet/Buick/Cadillac OEM 12563964 12606311 22443645 12586665
>> High Quality CNC Plate Drilling and Milling Machine, Phd3030, for Tube Sheet, Baffles, Flange, Bt50, Tapping, Boring, and Step Holes,
>> Top Quality 294kw 300HP Concrete Pump Truck Hb48 in Hot Sale
>> Affordable Cordless Electric Drill 300W 10mm Electric Torque Drill for Drilling
>> JOHNCOO Wholesale Bulk 0# 1# 2#3# 4# 5# 6# Stainless Steel Fishing Ball Bearing Rolling Swivels Fishing Accessory
>> Automatic Plastic Bottle Caps Preform Injection Molding Machine
>> ASME Portable and Safe Industrial T2 Feeding Tank
>> Vinyl Windows Upvc Pvc Single Double Hung Window Plastic Steel Windows
>> TPU PP PE PLA Plastic Pallet Making Machine for Laboratory
