Tony Manufacturing Scrap Plate Crusher Wood Crusher/Twig Shredder/Grinding Equipment/Wood Grinder

Product Description

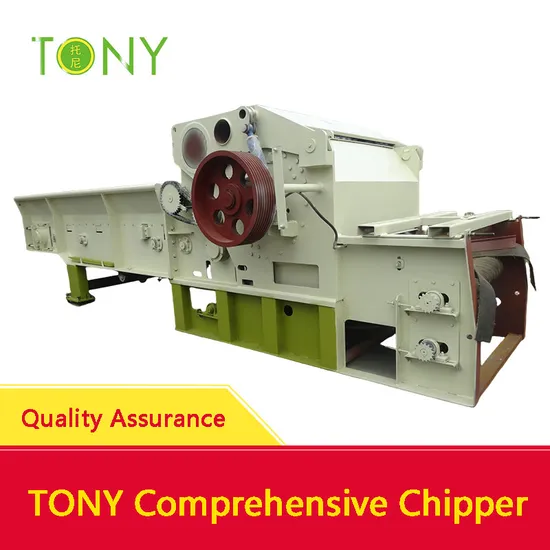

Tony brand wood crusher Wood Sawdust Making Machine
A wood chipperr is a specialized piece of equipment designed to reduce various wooden items and scrap wood into smaller pieces or fragments. It accomplishes this by using the impact force generated by high-speed rotating blades or hammers to break down the wood into chunks or shavings. Wood crushers are commonly employed in the woodworking and recycling industries, as well as in the processing of biomass energy.
Main Features of Wood Chipper

1.New design blade rotor,blades are easy to replaceable.
2.Screen mesh size is customized for different requirements on size of end product.
3.Reverse feeding device,belt conveyor can be reversed positively.This device can protect machine,when large wood is encountered
4.Higher capacity than the traditional type,larger feeding size,could chipping log diameter 200-400mm

Product advantages

1,Engaging blade. Crush the material thoroughly.
2,The blade is made of special material, which has higher hardness and even crushing.
3,Strong structure. Densely distributed reinforced ribs. Ensure the strength of the box.
4,Automated button control, safe, convenient, efficient and time-saving.
5,Safety signs and safety labels ensure safe use and operational arrangements.
6,Equipped with automatic nail removal device, efficient and convenient..


These machines can handle a wide range of wood materials, such as old furniture, construction templates, pallets, branches, and tree trunks. The resulting wood chips or particles can be utilized for various purposes, including paper production, plywood manufacturing, animal bedding, or as fuel for heating systems, thus providing both economic value and environmental benefits.Depending on specific requirements, there are several types of wood crushers available, like hammer mill crushers, disc-type wood crushers, and multifunctional wood crushers. Each type has its unique design features to meet different scale and demand for wood crushing.

Model	TPC1000	TPC1300	TPC1400
Inlet (mm)	1000	1300	1400
Blade	6	6	6
Max Diameter (cm)	20	30	35
Chip size (mm)	25-35	25-35	25-35
Capacity (Ton)	7-10	10-15	15-20
Main Motor Power (kw)	90	132	160
Weight (kg)	7000	11000	13000
Conveyor motor power (kw)	3	4.5	7.5

Structure and composition
1,Feeding:To transport wood with nails
2, Feeding pressure roller: control the feed rate and keep the sheet does not slip and on feed situation.
3, Sprial crushing roller; in the roll along the circumferential direction of the welding knife,to ensure
that the crushing roller in the circumferential direction of the same force.
4,The template is broken with the feed and broken sync,to achieve broken uniform.
5Feed roller with UCK series bearing plus spring compression mechanism,can be adapted to the
different thickness of template
6,Feeding roller and crushing roller with different power system,easy to control.
Interlocking blades ensure thorough material crushing. Blades made of special material are hard and provide uniform shredding. Rugged construction with grid-like reinforcement plates ensures box durability. Automatic button control for safety, convenience, efficiency, and time-saving. Safety signs and labels enhance user and operational safety. Equipped with automatic nail removal device for efficient and convenient use.
Clients on site

Our Company
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
Our Service

Best Service
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
Certifications



Pls tell me the following information: 1. What's the capacity you want?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content of your raw materials?
5. What's the final pellet size do you want?
6. Automatic packing or manual packing needed?
7. What's your country voltage?

FAQ
1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China. You can fly to Jinan airport and then we will pick you
up(40minutes by car) . All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to
the very end. Our factory has gained CE authentication.
