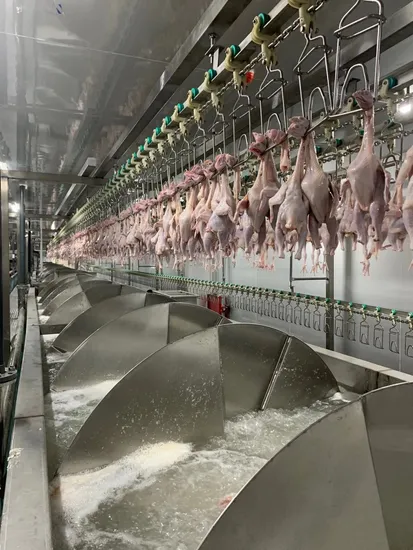

Chicken Spiral Cooling Tank in a Slaughter Machine Line

Product Description

ZDYL series Spiral Cooling Machine is the main machine in the production Line. The machine design as the principal of spiral fluidization.
It is use to low the temperature after offal removal.
The inside of the machine is U type and adopts air to stir the water .
after Cooling the temperature of the inside of carcasses will be 6-8 degree and the bacteria decrease .
This machine is made of stainless steel and meets the standard of the food industry .
We design and produce istall full set slaughter lines as chicken supplying ability as the client;s needs.
full chicken slaughtering machine Line includes chicken hanging area design ,
chicken killing and scalding and plucking design as the ability of chicken slaughtering house .
evisceation area design and offal processing ,spiral cooling includes air cooling and water cooling as the different final products processing.
carcass cutting and packing design

Model	ZDYL1650/9	ZDYL1800/9	ZDYL2000/9
Diameter(mm)	1550	1700	1900
Volume ( m3)	9	10.8	13.5
Power	XWE1.1KW-53-3481	XWE1.1KW-63-3481	XWE1.1KW-63-3481
Capacity(kg/h)	3270	3940	4900
Fan Power (kw)	1Χ5.5	2Χ5.5	2Χ5.5
Push Capacity	XWE0.75KW-42-731	XWE0.75KW-42-731	XWE0.75KW-731
Chilling Time(min)	30-45	30-45	30-45
Water Temp(ºC)	0-4	0-4	0-4
Gas Pressure :mpa	0.2	0.2	0.2
Size(mm)	10600Χ1820Χ1950	10600Χ2000Χ2100	10600Χ2200Χ2300
Machinery Weight(kg)	2000	2480	3200
