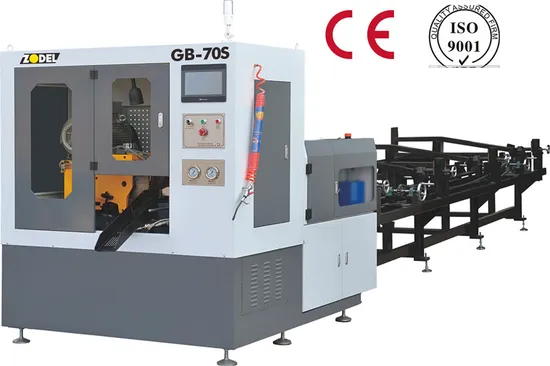

High Speed CNC Circular Saw for Metal Cutting
Basic Info.
Model NO.
GB-70
Brand
Sande
Type
Fixed
Power Source
Electricity
Customized
Non-Customized
Condition
New
High Speed Cutting
CNC
Transport Package
Plywood Case
Specification
set
Trademark
SANDE
Origin
Zhejiang, China
HS Code
84615000
Production Capacity
50sets/Month
Product Description
Specifications Steel bar diameter: 70mmCutting speed: 11 seconds per piece
Cutting quantity per day (8 hours)=6*60*8=3600 pieces
Working steps: loading bars to automatic loading device, then set length you want, then operate it.
Can working 24 hours without human operation.
Suitable for mass production.
Widely used to manufacture gear, bearing, standard car accessory
GB-70 Technical Data
| 1 | cutting capacity | round | Φ15 mm--Φ70 mm |
| square | 15 mm--60 mm | ||
| Cutting length | 5mm--500mm | ||
| Front cut length | 10mm-40mm | ||
| Leaving length | 70mm--70+cutting length | ||
| 2 | saw blade | Teeth number | 60, 72, 80, 120 |
| size | Φ285xΦ32x2.0 mm | ||
| 3 | saw blade axis | rev | 60/80/100/120rpm |
| Cutting drive | Servo motor+ball screw | ||
| 4 | Material feeding | Feeding speed | 8-12m/m |
| Cutting speed | 4-12mm/s | ||
| Feeding mode | Clamp feeding | ||
| Feeding drive | Servo motor+ball screw | ||
| 5 | Saw blade motor | AC 7.5KW 4P | |
| 6 | Oil pressure motor | AC 3.75KW 4P | |
| 7 | Oil tank capacity | 100 L | |
| 8 | Machine size | 2100x1500x1620mm | |
| 9 | Machine weight | 1500kg |
Factory Show:
Packing & Loading:
Certificates:
Show of the fairs:
Welcome ODM or OEM business!
| FAQ: |
| 1) Q: Can i have your quotation? A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine 2) Q: Do you have overseas service? A: No,but we normally help our customers to solve the problems through phone,Email, skype, internet video. high efficiency. We offer one year guaranteen, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client 3)Q: What is the voltage and Hertz in your country? A: In China,the Voltage is 380V(3 Phase), the Hertz is 50HZ, we can change the voltage and Hertz according to your requirment. 4) Q: How about the payment term A: T/T 30% deposit, 70% of balance paid at the sight of bl copy send by email. |
