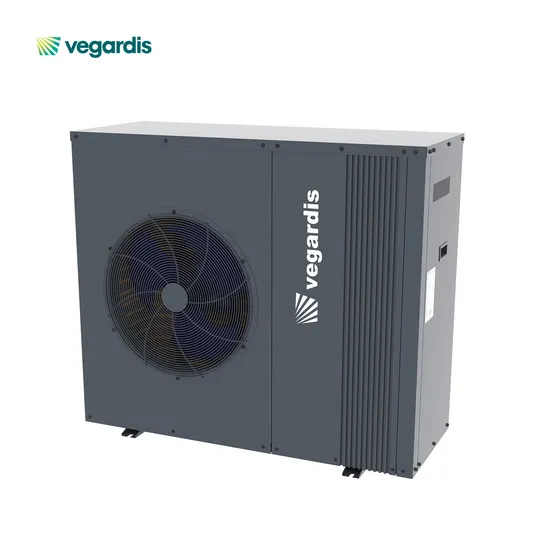

High Efficiency 12kw R32 Air to Water Heat Pump for Residential New Building and Renovation

Product Description

High Efficiency 12kw R32 Air to Water Heat Pump for Residential New building and renovation
ECO friendly new refrigerant: R32
GWP (Global Warming Potential) only 675, only approximately 1/3 compare with R410A.
Higher efficient technology:
15 years in manufacturing heat pump
Well-known brand Mitsubishi compressor, twin-rotary and DC Inverter technology, the twin rotors balance each other for anti-vibration,creates lower noise and more efficient.
Welling Brushless DC fan motor, with good quality of long time running test and low noise.
Saginomiya brand electronic expansion valve for precise refrigerant control.
Wilo DC inverter Water pump,Low noise, low vibration, high efficiency, high reliability, easy maintenance
Brushless DC motor
High COP/EER performance for save energy Product Parameters

Model		VLKS-06CPB2B	VLKS-09CPB2B	VLKS-12CPB2B	VLKS-16CPB2B
Heating capacity A7/W35ºC(EN14511)	KW	6.21KW	8.9KW	12KW	16.3W
Heating capacity A2/W35ºC(EN14511)	KW	5.56	7.97	10.8	14.49
COP A2/W35(EN14511)		4.56	4.53	4.43	4.49
COP A7/W35 (EN14511)		4.93	4.92	4.8	4.88
Cooling capacity A35/W7ºC	KW	4.9	5.9	8.1	11.4
EER A35/W7 (EN14511)		2.97	2.95	2.86	2.85
Cooling capacity A35/18 (EN14511)	KW	6.35	8.1	11	15.6
EER A35/W18 (EN14511)		3.97	3.89	3.53	3.63
Electric supply		230V/50Hz	230V/50Hz	230V/50Hz	230V/1Ph Hz
Refrigerant		R32
Unit dimensions LXWXH	mm	1115x425X710	1115x425x710	1115x425x960	1115x425x1280
Package dimension LXWXH	mm	1160x520x860	1160x520x860	1160x520x1110	1160x520x1440
Net Weight	Kg	90	90	105	140
Noise level	dB(A)	46	46	50	52
Loading quantity for 20'/40'		44/88	44/88	44/88	22/44

Heat Pump Project
Product Description
Monobloc Air to Water Heat Pumps Working Principle Diagram
Vegardis provides the monoblock heat pump with an integrated main circulation pump. During installation, the installer needs to ensure the proper connection of the heat pump with other components, such as the buffer tank (for space heating/cooling), storage water tank (for domestic hot water), and water pumps (for circulating space heating/cooling water and domestic hot water)Additionally, external fittings are required, including the safety valve, water refill valve, and hot water valves (three-way valve). lt is necessary to incorporate a temperature sensor in the storage water
Company Profile
Molisi Technology was founded in 2004, focusing on heat pump R&D, manufacturing and providing comprehensive energy-saving solutions.
Molisi Technology offers the best solution for heating cooling and hot water supply with dc inverter technology. Vegardis heat pump has always been committed to saving energy. DC inverter EVI technology can effectively reduce power consumption and improve the heating performance of heat pump units to ensure stable performance even at ambient temperatures as low as -35°C.
Molisi Factory has obtained ISO9001, ISO14001,ISO45001 certificates
Main products:
air to water heat pump with R290/R32 refrigerant
EVI air to water heat pump
air source heat pump
Advantage:
15 years exporting experience
Strong R&D team
Custom made service
CE certificate,ERP A+++



Exhibitions
FAQ
1.How many years have your company been in heat pump industry?
Over 15 years in heat pump industry with 200 staff,20 engineers team
2. Do you accept OEM & ODM?
Yes. We can produce high quality custom made air source heat pump according to customers' requirement, modify the products to satisfy client's requirements and work together with clients to design a new product.
3. What support do you offer to clients?
We can provide product certification requirements for local markets; provide catalogs, technical manuals;
4.How long is the Heat Pump delivery time?
Generally production time will be 25-35 days,
5.What is your terms of payment for heat pump ?
For small order,100% paid in advance. For big order 30% T/T in advance ,balance before shipment.
6.How long can I get feedback after sending inquiry
We will check inquiry and message everyday.Our sales clerk will reply to you accordingly in 24 hours. Please complete your email and telephone or mobile number in your personal information so that we can contact you soon.
7.How about the quality control?
Finished products 100% inspected before package,ISO9001 factory
8.How about the shipment?
We provide shipment by sea or by train according to your requirements.
9.How is your service?
We provide pre-sales,in-sales and after sales service within 24 hours

CE Certificate
ERP Label
