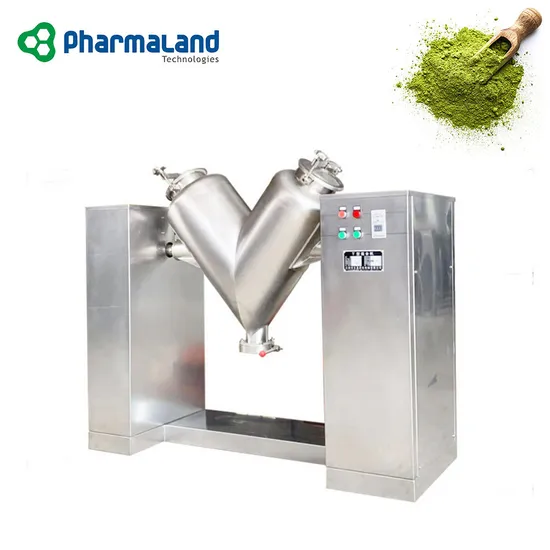

V Type Powder Mixing Machines Lab Dry Powder Mixer Chemical Mixing Equipment Mixing Tank Mixing Raw Material Machine

Product Description

V Type Powder Mixing Machines Lab Dry Powder Mixer Chemical Mixing Equipment Mixing Tank Mixing Raw Material Product Description Technique Parameter:

Model	Barrel Volume (L)	Max. Loading Volume (L)	Productive Capacity (kgs/time)	Motor Power (kw)	Mixing Speed (r/min)	Dimension (mm)	Weight (kg)
PVH-100	100	40	25	0.75	12	1600*600*1500	180
PVH-200	200	80	50	1.1	12	1900*700*1600	270
PVH-300	300	120	75	1.5	12	2100*800*1620	350
PVH-400	400	160	100	1.5	8~10	2300*850*1900	500
PVH-500	500	200	120	1.5	8~10	2400*900*1950	600
PVH-800	800	320	200	2.2	8~10	2600*1000*2100	850
PVH-1000	1000	400	250	2.2	8~10	2700*1100*2300	1200
PVH-1500	1500	600	400	4	8~10	3200*1400*2500	1400
PVH-2000	2000	800	500	5.5	7	2400*1400*2700	1700
PVH-3000	3000	1200	800	7.5	6	3200*1500*3000	2100

Advantages V-type mixer has the advantages of good mixing effect, high efficiency, low power consumption, simple operation, etc. Widely used in dry powder granular mixing .

1. V-type mixer is simple to operate and the mixing effect is uniform, feeding can be manual or equipped with vacuum suction device, discharge using butterfly valve device, using asymmetrical cylinder body, cylinder body are made of SUS304 material, smooth inside, easy to clean.
2. V-type mixer column frame is made of steel structure, worm gear reducer and gear rotation deceleration are made of carbon structure, to meet the design requirements of the machine operation.
The distribution box is equipped with timing device, which can be opened regularly according to the requirements of materials.
3. V-type mixer is composed of two asymmetrical cylinders, the material can do vertical and horizontal flow, mixing uniformity reaches more than 99%. Beautiful appearance, uniform mixing, widely used.
Delivered Project
Company Information
Pharmaland Technologies Ltd, is a Canada company that was found in 2005 in Toronto with a version to offer affordable quality nutraceutical equipments and technical supports to our customers in nutraceutical and food industries. With a global source of technologies and partnerships with those strategic manufacturers mainly in China, Pharmaland offers those most competitive products of the latest technologies with the world leading brand value.

Pharmaland Technologies' machines are designed and developed with concepts and standards of Canadian mechanical quality and safety, and built up from our facilities of jointed venture and strategic partnership globally, mainly from those leading nutraceutical machinery manufacturers in China to offer solid, dependable, affordable and build-in last and long durations of production and package need.

We have our technical support team both in Toronto and Shenzhen China. We have our workshop, showroom and training center as well as parts inventory warehouse in China to provide our prompt service to global customer need.

Packaging & Shipping
FAQ Q1: How can you ensure the machines' quality?
A1: Our factory is equipped with high precision lathe, and we only adopt superior material and leading brand components, the machines are designed in accordance with GMP standard.
We have very strict internal inspection during production and before shipment, will provide photos and testing video before shipment to our clients, the machines have one year warranty but life time service .
Q2: Will validation documents provided?
A2: Yes, we can provide full set documents, IQ, OQ,PQ etc.
Q3. Any certificate you can provided?
A3: ISO9001. CE and GMP approved.
Q4: What kind of after-sales service you can provided?
A4: 1. We offer 12 months warranty and lifetime technic service .
2.Here is any technic problem, we will response within 24 hours by email or over phone, if problem can't be solved on-line, we can arrange technician to provide on-site service.
Q5: Can you provide customized manufacture?
A5: Yes, we have professional technician team to provide customized solutions, just share with us your request for evaluating.
Q6. How can I trust you for first time cooperation?
A6:
1. We provide our business license for verification.
2. With over 20 years of industry experience and good reputation on the market.
3. You're welcome to visit our factory.
4. We support online ordering.
5. Balance payment is made upon satisfactory inspection of machines
