Dry Spice Rose Melon Seeds Grinder Machine Sugar Ant Zein Coffee Pulverizing Machine

Product Description

Product Description
F Series Universal Crusher
Product Introduction:
This machine is suitable for crushing materials in pharmaceutical, food, chemical industries...etc. Working Principle:It utilizes the relative motion between the movable teeth disk and the fixed teeth disk to crush materials through teeth impact and friction.The different output size can be obtained by changing the screen.
Product Parameters
Technical Data:

Model	Capacity kg/h	Spindle speed rpm	Feeding Size mm	Crushing fineness mesh	Motor Power kw	Overall size (LXWXH) mm	Weight kg
F-10B	5-50	6000	6	12-120	2.2	500 × 580 × 1000	95
F-20B	30-150	4500	6	12-120	4	550 × 650 × 1200	150
F-30B	60-300	3800	10	12-120	5.5	600 × 750 × 1350	210
F-40B	100-600	3400	12	12-120	11	700 × 850 × 1550	350
F-50B	200-900	2900	15	12-120	15	800 × 870 × 1780	500
F-60B	300-1200	2900	15	12-120	22	900 × 900 × 1910	760
F-80B	400-2000	2000	15	12-120	30	1000 × 950 × 2100	1000
F-100B	600-3000	1500	15	12-120	37	1400 × 1100 × 2800	2000

Detailed Photos

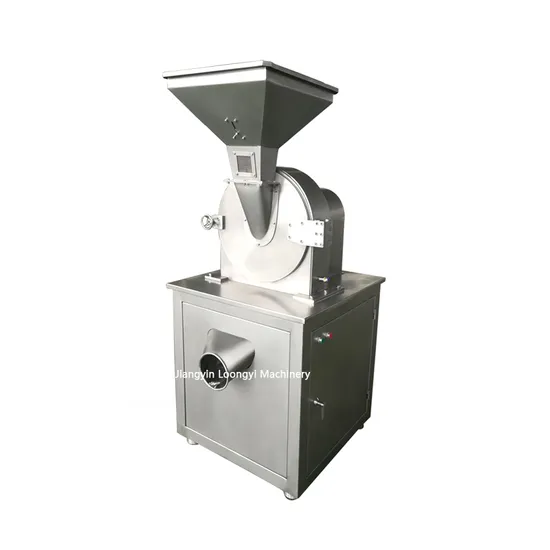

Product Pictures:
Company Profile
With more than 20 years of manufacturing experience, Jiangyin Loongyi Machinery Co.,ltd specialized in manufacturing powder
grinding machine, mixing machine, sifting machine, granulator machine, packing machine, drying machine, conveying machine,
slicing machine, cleaning machine and so on, which are widely used in foodstuff, chemical, pharmaceutical and other industries,etc.
Since its foundation, Loongyi has always adhered with the principle of quality firstly and technology is life. The company owns more
than 50 employees, about 1000m2 of office space, cover about 9000m2 of manufacturing space. With customer concentric idea as
base, it takes every detail seriously in the process of production to assure high performance and quality of each part and equipment
as well as the stable operation in more than 80 countries around the world. Our products have been exported to such countries and
regions as USA,Canada, Europe, Japan, Australia,Africa,South Asia,middle Asia. We also welcome OEM and ODM models.
Our products are approved by CE and ISO.
Loongyi Machinery locates in No. 236 Yungu Road, Zhutang town, Jiangyin City, Wuxi City, Jiangsu Province, China. It takes about
20 minutes to take the high-speed train from Shanghai to our city; It takes about 40 minutes to drive from the high speed railway station to our factory. There is airplane in our city, so transportation is very convenient.
Over these years, our company has made elaborate design and improvement,on the basis of absorbing features and advantages of
similar products both at home and abroad.
The products have won good reputation and praises among all customers, from at home and abroad,too.
