Automatic Woodworking Slicing Engineer Wood Log Machine Vertical Slicer

Automatic Woodworking Slicing Engineer Wood Log Machine Vertical Slicer

US$110,000.00 1 Set (MOQ)

Basic Info.

Model NO.
BB1332T
After-sales Service
1 Year
Max Cutting Size
2900*600*500mm
Blade Size
3200*200*19mm
Veneer Thickness
0.4-5mm
Cutting Speed
Max: 40pvs/Min
Wood Clamping Method
Hydraulic
Total Power
51.3kw
Main Motor
37kw
Hydraulic Motor
5.5kw
Sevor Motor
7.5kw
Criculating Heat Water Motor
0.75kw
Conveyor Power
0.55kw
Weight
26000kg
Overall Szie
7000*5000*4000mm
Transport Package
Plastic Films
Specification
7000*5000*4000mm
Trademark
HOLZH
Origin
Qingdao
HS Code
846596
Production Capacity
15sets/Month

Product Description

We supply high quality BB1326T BB1332T Vertical Veneer Slicer Product Show

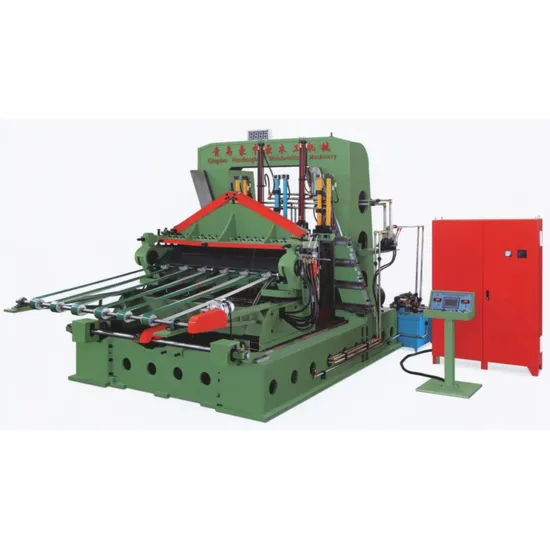

1.Product Show
Product Description
2.Product Description
Model BB1326T BB1332T
Max cutting size 2400*600*500mm 2900*600*500mm
Blade size 2600*200*19mm 3200*200*19mm
Veneer thickness 0.4-5mm 0.4-5mm
Slicing speed 15-40pcs/min 15-40pcs/min
Clamping methods Auto & manual Auto & manual
Total power 44.3Kw 51.3Kw
Main motor 30kw 37kw
Blade feeding motor 7.5kw servo motor 7.5kw servo motor
Hydraulic pump motor 5.5kw 5.5kw
Circulating heat water motor 0.75kw 0.75kw
Conveyor motor 0.55kw 0.55kw
Overall size 7000*4000*4000mm 7000*5000*4000mm
Weight 23T 26T

Installation Instructions
3.Main Introduction
1.This machine subverts the concept of only sawing and longitudinal slicer can make thicker veneer in the past and breaks through the thinking style of wood processing and obtains the invention patent of new national product so as to provide reliable guarantee for the high and efficient timber processing.
2.The main motor DC motor, the controller uses Scheniders and with energy-saving devices.
3.To guarantee precise veneer thickness, we use ball screw with servo motor.To avoid veneer scratch we used auto blade back system
4.Use hvdraulic system, log clamping become more convenient for operator and improves efficiency
5.Control cabinet combines electric and hydraulic system, make it easy forsingle operator
6.Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
7.Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
8.Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed.
Detailed Photos
4.Product Details
Company Profile
5.Company Information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
Our website is sanding machine.en.made-in-china.com; you could get more information about our company and our products.
