Waste Paper Machine Gravity Cylinder Thickener

Product Description

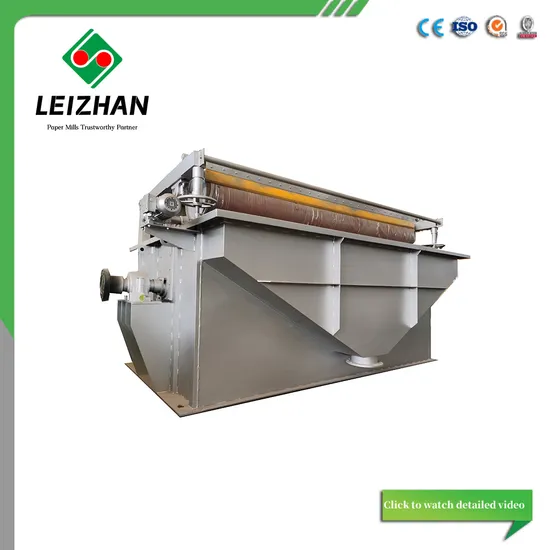

Product Description Gravity thickener with SS cylinder is a kind of pulp washing equipment used in the pulp and paper industry.
According to the needs of production, it can be used for washing the coarse pulp after cooking or for washing and concentrating the pulp after bleaching.
This enrichment machine has a tilted forward slurry tank, the side formed into pulp slurry, A high cylinder in size by the side groove rotates the pressure and makes the pulp dehydration enrichment is concentrated pulp formed between the rotary screen and roller pressure zone, further dehydration and post attached to the surface of the roller, the blade into the slurry tank. The filtrate flows into white water pipes from both ends of the circular mesh.
Detailed Photos
Product Parameters
Working Principle Cylinder drum: Stainless Steel / Carbon Steel / High wear resistance plastic sheet whose function is to encourage the slurry to concentrate and dehydrate on its surface. Slurry tank The slurry tank is welded with shaped steel, the upper part of the tank is connected to the slurry pipe, and the slurry pipe is equipped with a valve (self-matching) to adjust the amount of slurry, and the bottom of the slurry tank is equipped with sewage pipe. Press roll The pressure roll is a roll covered by rubber, with a sealing groove at both ends, two ends are equipped with a lever pressurizing device to exert pressure on the circular mesh to strengthen the pulp layer dehydration and improve the pulp yield.

Item \ Type		ZNW22	ZNW23	ZNW24	ZNW25	ZNW30	ZNW35	ZNW40
Filter Area (m2)		10	15	20	25	30	35	40
Inlet Consistency (%)		0.3~1.2
Outlet Consistency(%)		4~6
Power (kW)		7.5		11		15	18.5	22
Production	Straw Pulp	0.8~1t(m2·d)
	Bulrush Pulp	2~2.5t(m2·d)
	Chemical Wood Pulp	3~3.5t(m2·d)
	Waste Paper Pulp	1.5~2t(m2·d)
