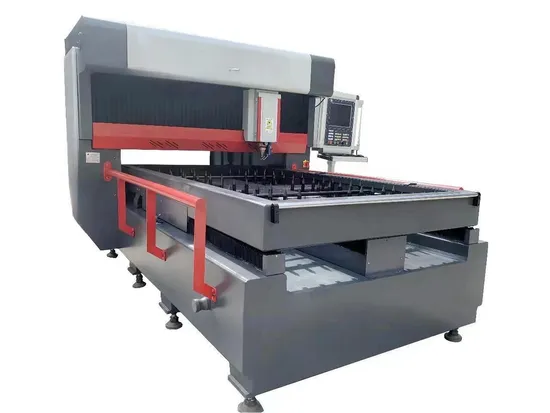

High Precision 600 W CO2 Laser Die Board Cutting Steel Rule Die Making Machine

Product Description

Technical
Specifications:

Machine model No.	LC600-1325
Laser Type	LaserCO2direct-currentstimulatedglasslaser
Machine weight	2200kgs
Driving motor	Panasonic Servo Motor
Cutting depth	15mm-18mm-20mmplywood
Cutting precision	±0.05MM
USB port connection	Yes
Operating temperature	0-45°C
Mold knife thickness	0.45mm,0.71mm,1.07mm…etc.controllable
Cutting speed600W	45meters/hour18mm,faster for thinner wood board
Protective gas	Dry and oil-free air
Power supply	Single-phase electricity 220V±5% 50Hz 10A
Numerical control panel	LCD screen, light-touched key-press
Software supported	Auto CAD,
Graphic format support	AUTO CAD files.
EMS memory	Attached 1GB memory,can work under off-line condition
Laser tube guarantee	Guarantee 10 months,6000 hours life of laser tube in theory

Assistant equipment		Air Dryer ,industrial chiller,Exhaust Fan,Computer System
Recommend spare parts		Laser Tube,Lens,Mirror
H.S Code		84561100.90
Item	N.W/CTN (KGS)		Package Quantity	Carton Size(M)	W. (KGS)	Total CBM (M³)
AL600-1325 Die Board Laser Cutting Machine	2200		1	L5 x W2.2 x H1.65	2250	18.15

TOTAL TWO MIDDLE WOODEN CASES PACKING. TOTAL GW:2200K GS.TOTAL CBM:19.16M³

600W-1325(Laser head fixed,cutting table moving)
Overall Whole Machine Size	L5.2MxW2.2MxH1.65M
Machine Working Place Size Requested	L4.5MxW5MxH1.75M
Factory Door Size Requested	W2.0MxH1.8M

Machine/Assistant Equipment Features:
Motor System:
Panasonic Servo Motor to guarantee high precision cutting.
Drive System:
HIWIN Linear guide rail+ball screw to guarantee high precision cutting and table moving.
External light path system:
USA II-V Iopticallens and reflector mirror to guarantee strong laser focus.
Cooling system:
China Guangzhou S&ACW 6100 Industrial Chiller water cooling.
Exhausting system:
one set 1100 watt exhaust fans to carry out smoking
Laser control system:
fully English,Russian,Spanish language TSD laser software, PC control.
Laser power Devices:
1.China brand.Fixed laser path,ensure the stability of the optical path.
2.Laser cutting head coming with auto touching following system,adapt to the jagged materials.
3.High temperature heat treatment working table and large gantry milling processin
4.Stable machine design,high strength of machine bed,long-year working Low consumption of voltage about 5-7kilo watt per hour
Technical parameters 1.Cutting range: 1300 mmx2500mm
2.Cutting power: 400 w,600w
3.Memory capacity: machine with 64 MB of storage, can work offline
4.Cutting accuracy: + / - 0.05 mm
5. Supported formats:DXF, PLT, DST, BMP format
6. Driving mode: the precision lead screw transmission
7. Cutting thickness: 25 mm or less
8. Working voltage: 220 v + 10% for 50 hz
9. Working temperature: 0 ºC - 45 ºC
10. Working humidity: 5-95% (without condensate)
Characteristics of the equipment: 1. Adopts single head cutting method, greatly improving the speed, and so more uniform kerf width.
2. Low consumption: an external power source 220 v, and out-of-the-box without boot wait time, laser knife mold cutting machine running cost less than five dollars an hour.
3. Easy operation, simple and clear knife slit adjustment technology, cutting software and Auto CAD, Corel Draw, Adobe Photoshop can compatible, edit path handy operation.
4. The high stability: the fixed optical path structure, adopt Taiwan import original guide rail, X, Y, the two sides to import precision ball screw drive, to guarantee the precision and stability of the transmission.
5. long durability, do not need to add any auxiliary cutting the gas. Laser reflection focus lens in U.S. imported and greatly reduce the laser power attenuation in the transmission process.
6. The enclosed thermostat industrial laser cooling system, the optical path of steady precise temperature control, greatly extend the service life of laser tube
7. Application: adaptation of wide: one-time cutting, 15 mm, 18 mm, 20 mm, 23 mm wood die cutter, adhesive BanDao mould, organic glass, wood wood, acrylic board etc. Nonmetal sheet, 18 mm cutting board can be cut 30-45 meters per hour.
Technical support
Complete set of product output, and strong technical support, home delivery, installation and debugging for laser knife mold machine operator training mount guard, let you in use process have no trouble back at home
After-sales service
The machine warranty for one year.
