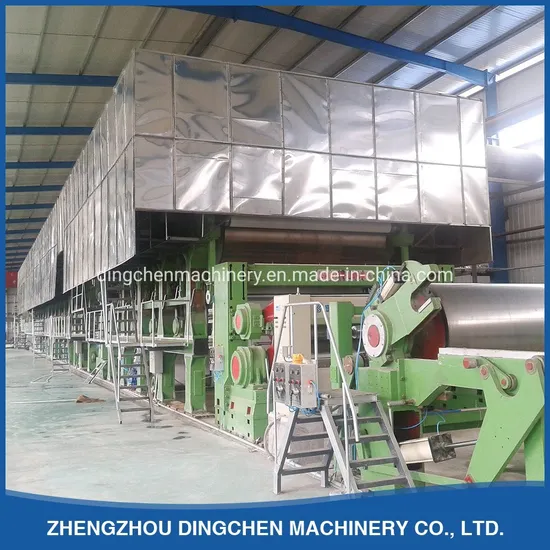

Dingchen Complete Plant Newspaper A4 Paper Making Machine (1575mm 10tpd)

Product Description

Dingchen Complete Plant Newspaper A4 Paper Making Machine (1575mm 10tpd)

Technical parameter:

1	Raw material	wheat straw pulp,reed pulp
2	Output paper	A4 Cultural paper
3	Paper weight	70-80gsm
4	Net paper width	1600mm
5	Wire width	1950mm
6	Capacity	10T/D
7	Working speed	90-100 m/min
8	Design speed	50-150m/min
9	Rail gauge	2400mm
10	Drive way	Alternating current frequency conversion adjustable speed, section drive

Note:
Financial Analysis can be provided if customers' need to compare with cost of different Raw Materials.

Tips

Different model has different specifications
If customer want to get a quotation as soon as possible, please provide the following information for us :
1.Output paper type;
2.Capacity(tons/24hours);
3.Output paper weight(gram/m2);
4.Raw material
Main equipment structure:
1.Fourdrinier wire section:10.83m×1950mm fourdrinier wire 1 set;Φ450mm×2400mm vacuum couch roll 1 set; forming table wrapped by stainless steel, headbox made by (304) stainless steel .
2.Press section: Φ650 natural marble roll 2 sets,Φ600mm×1950mm rubber roll 2 sets, rubber shore hardness 95ºC±2. .
3.Dryer section: Φ1500mm×1950mm×2400mm alloy dryer can 6 sets, first and second can chroming. With Dry felt device, blade 6 sets,semi-closed dryer exhaust hood 1 set.
4.Calender section:3 rolls calender 1 set,bottom roll Φ300mm,middle roll Φ300mm,top roll Φ350mm
5.Winding section:with 1600mm Horizontal pneumatic rewinding machine 1 set,winding drum Φ900mm×1900mm×2400mm.
6.Rewinding section:with 1600mm frame-style rewinder 1 set,(overfeed)
7.Cutting section:with 1600 heavy-duty single cutter 1 set.
