High Quality Lathe Machine 3000mm Cw6180 Chuck Lathe Machine with 2 Axis Dro

Product Description

Product Description
The CW Series Heavy-Duty Lathe stands out for its robust design and precision capabilities. Key features include:
Heavy-Duty Construction: Built with high-quality cast iron, it ensures rigidity and stability, minimizing vibrations for precise machining.
High Power and Torque: Equipped with a powerful motor, it handles heavy workpieces and deep cuts effortlessly.
Large Swing Over Bed: Accommodates oversized components, making it ideal for industries like aerospace and energy.
Advanced Control System: Offers user-friendly CNC or manual controls, ensuring flexibility and ease of operation.
Precision and Reliability: High-precision spindle bearings and a rigid bed design deliver superior accuracy and consistent performance.
Product Parameters

Specification	Unit	CW6180
Swing over bed	mm	800
Swing over cross slide	mm	520
Distance between center	mm	1500/2000/3000
Guideway width	mm	550/600
Max.loading capacity	t	3
Spindle bore	-	105
Spindle bore taper	-	Metric-120/MT6
Spindle nose type	-	1:30
Spindle speed steps		FWD.21 STEP
Spindle speed range	rpm	18,7.5-1000
Chuck	mm	500-4-jaw manual
Turret/tool post	-	4-station
Tool size	mm	32*32
X axis travel	mm	480
Z axis travel	mm	3750
X axis feed grade/range	Mm/r	64/0.05-6
Y axis feed grade/range	Mm/r	64/0.1-2
X axis rapid traverse	Mm/min	1870
Y axis rapid traverse	Mm/min	3740
Metric thread grade/range	mm	44/1-120
Inch thread grade/range	T.P.I	31/28-3/8
Module thread grade/range	mm	-
DP thread grade/range	D.P	-
Tailstock quill diameter	mm	100
Tailstock quill taper	-	80
Tailstock quill travel	mm	250
Main motor power	kw	11
Rapid traverse motor	kw	1.5
Coolant pump motor	kw	0.125
Width * height	mm	1450*1575
Length	mm	3600/4100/5200
Net weight	t	4100/4500/5000

Detailed Photos
MANUAL CHUCK
The standard version is equipped with a 3-jaw or 4-jaw manual chuck. Customers can choose chucks of different sizes according to their requirements. A hydraulic chuck

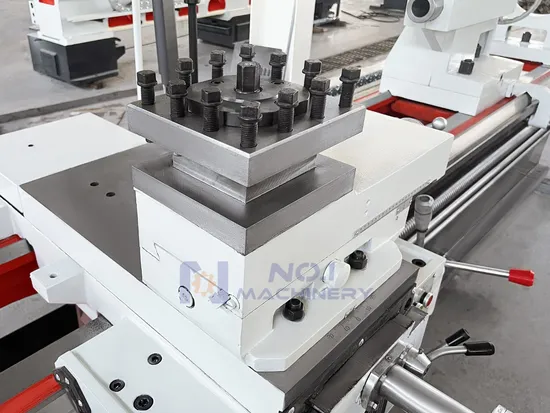

FOUR-STATION TOOL HOLDER
Four-station tool holder,fast-moving mechanism,can be operated with one hand, and tool holder pro-tection is optional.
QUENCHED TAILSTOCK
The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.
HIGH PRECISION SCREW
It has good wear resistance and accuracy retention,ensuring that the machine can be used for a long time and has a long life.
STEADY REST
Steady rest are optional accessories, need extra cost.
HIGH PRECISION SCREW
It has good wear resistance and accuracy retention,ensuring that the machine can be used for a long time and has a long life.
2 AXIS DRO
2 axis digital readoutis optional accessory,clinets can choose it asrequirement.
