Graphite Tape for Spiral Wound Gasket Filler Flexible Graphite Foil Graphite Paper

Product Description

Products Description
Expanded graphite tape used for Spiral Wound Gasket,SWG,SPW gasket Graphite paper and graphite sheet :
It is made of high carbon phosphorus graphite by chemical treatment and high temperature expansion rolling. It is the basic material for manufacturing various graphite seals
It is widely used in the dynamic and static seals of machines, pipes, pumps and valves in electric power, petroleum, chemical industry, instrument, machinery, diamond and other industries.
It is an ideal new sealing material to replace traditional seals such as rubber, fluoroplastic and asbestos. With the acceleration of the upgrading of electronic products and the increasing demand for heat dissipation management of mini, high integration and high-performance electronic equipment, a new heat dissipation technology of electronic products, that is, a new heat dissipation solution of graphite material, has also been introduced. This new natural graphite solution uses graphite paper with high heat dissipation efficiency, small occupied space and light weight.
It conducts heat evenly in both directions, eliminates "hot spot" areas, shields heat sources and components, and improves the performance of consumer electronic products.

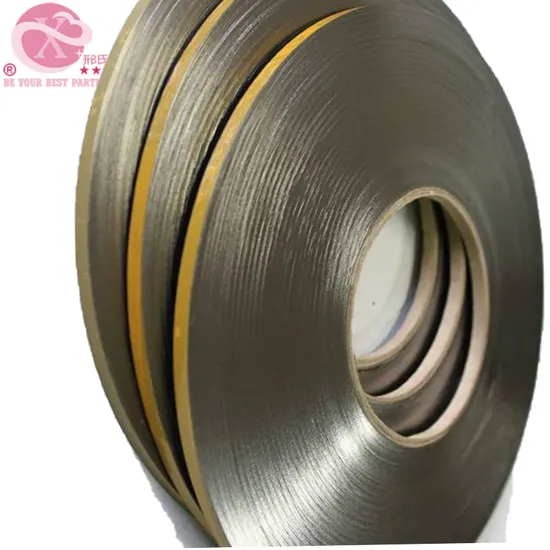

Spiral wound gasket graphite tape :
The winding pad graphite strip adopts a high-precision CNC lathe to cut the graphite coil into strips with special tools. Compared with the traditional graphite strip opening, it has higher precision, less damage to the graphite coil, and the cutting part is smooth and burr free. It is used to produce the filling material of graphite winding pad.

Product Parameters :
Pure Expanded graphite tape for making Spiral wound gasket.
C>=95% , 99% Sulfur content ≤ 1200ppm Cholride content ≤ 50 PPM
Working Temperature : -200ºC to +550 ºC (Air)
-200ºC to +650 ºC (Oxidation)
Working Pressure : 140 bar
Bulk density : 0.7- 1.1g/cm3
**** Single Sided Adhesive backing

Fixed carbon (%)	Ash (%)	Thickness (Tolerance±0.03mm)	Width	Length	Density (Tolerance ±0.05g/ cm3)
95	≤5	0.3mm-1.5mm	1000mm,	30-200Mtr	0.7-1.5g/c.c
99	≤1	0.3mm-1.5mm	1000mm,	30-200Mtr	0.7-1.5g/c.c

****Other thickness or Width Customized

Product Features :
1.High Temperature and cold temperature Resistance
2. Excellent corrosion resistant
3.Easy to use , Low Cost
4. Good compression resilient
5.Good self-lubrication and high resilience
Work For :
It is widely used in dynamic and static sealing of machines, pipes, pumps and valves in electric power, petroleum, chemical industry, instrument, machinery, diamond and other industries. It is an ideal new sealing material to replace traditional seals such as rubber, fluoroplastic and asbestos. It can also be used in smart phones, mid mobile Internet devices, tablets, notebooks, led liquid crystal displays, PDP plasma TVs, LED lighting and backlight modules, digital cameras, digital cameras, projectors and so on.
The foreign manufacturing standards for metal wound gaskets are: ASME B 16.20, ASME B 16.5, ASME B 16.47 A (B), BS EN1092, JIS, and NF, etc. and can provide various kinds of winding pad graphite tapes as needed, and the winding mat asbestos is not available. Asbestos tape, wound mat ceramic fiber tape, metal formed steel strip, etc.
Wrapped pad graphite tape related standard status:
HG20610-2009 Wound gasket for steel pipe flanges European system of Ministry of Chemical Industry
HG20631-2009 Wound gasket for steel pipe flanges
GB/T4622.2-97 Wound gaskets Gaskets for pipe flanges National standard
JB/T4719-92 Winding gasket for shell and tube heat exchanger
JB/T90-94 Wound gasket for pipe flanges
JB/T4705-2000 Wound gasket for pressure vessel flanges
SH3407-96 Wound gasket for pipe flange
JB/T 53392-1999|Flexible Graphite Sheet Product Quality Grading
B/T 7758.2-2005|Flexible graphite plate Technical conditions
JB/T 9141.4-1999|Flexible graphite sheet, compression rate, rebound rate test method
JB/T 7758.4-2008|Flexible graphite sheet Determination of chlorine content
JB/T 7758.3-2005|Method for determination of sulfur content in flexible graphite sheets
Products Display :
Package :
Export Standard : Cartons ON wooden Pallets , If afraid damage , Wooden Case is Acceptable . Or Customized .
Welcome to Xingshi Carbon ! We are Graphite Paper Factory , Not sealing Material Trader !!!
