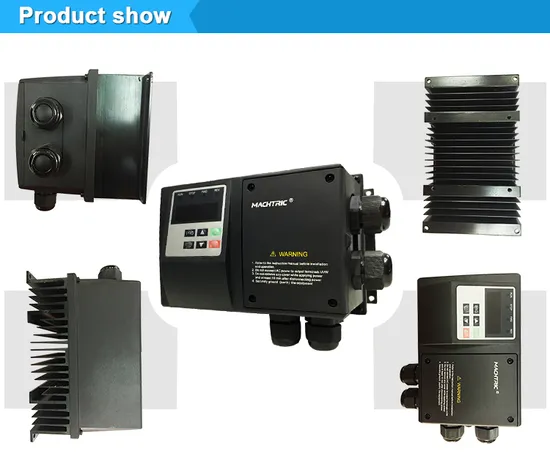

IP 65 VSD Factory Supplier with Waterproof High Quality

IP 65 VSD Factory Supplier with Waterproof High Quality

US$150.00 1 Piece (MOQ)

Basic Info.

Model NO.
S2100S
Output Power
0.4-18.5kw
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
AC-DC-AC
220V Single/Three Phase
0.4-3.7kw
380V Three Phases
0.75-18.5kw
Control
V/F Control
Output Frequency
0.1-400Hz
Other Service
OEM
Pid
Built-in
PLC
Simple PLC Function
Warranty
12months
IP Degree
IP65
Color
Black
Phase
1/3 Phase
Power Source
Electric Power
Application
Pump, Water Working, General Purpose
Brand
Machtric
Transport Package
Standard Export Carton Packing
Specification
CE, ISO9000, ISO14001, OHSAS18000
Trademark
Machtric
Origin
Fujian, China
HS Code
85044099
Production Capacity
5000 Piece/Pieces Per Month

Product Description

1. Specification
Model S2100S
Input Rated voltage,Frequency 3 AC 380V / 220V; 50-60 Hz
Voltage Range 380V: 330V~440V;220V: 170-240V
Output Voltage Range 380 V: 0~380 V; 220V: 0-220V
Frequency Range 0.10~400.0 Hz
Control method V/F control,Space verctor control
Indication Operating status/Alarm definition /interactive guidance;eg,frequency setting,the output frequency/current,DC bus voltage,the temperature and so on.
Control Specification Output Frequency Range 0.10~400.00 Hz.
Frequency Setting Resolution Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency
Output Frequency Accuracy 0.01 Hz.
V/F Control Setting V/F curve to satisfy various load requirements
Torque Control Auto increase:auto raise torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque
Multifuncional Input Terminal 8 multi-function input terminals,realizing function including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions
Multifuntional Output Terminal 3 multi-function output terminals for displaying of running,zero speed,counter,external abnormality,program operation and other information and warnings

2. Advantage :

Big savings on installation:
With a built in RFI filter, the S2100S IP65 inverter can be positioned close to the motor which cuts thecost of shielded motor cables. Choose the version with integrated insulator to simplify your external connections.
Big performance:
The S2100S IP65 is a modern sensorless vector inverter with 200% overload capacity, a wide range of supply and fieldbus options, and excellent I/O.

Big advantages of easy handling:
The S2100S IP65 inverters integrate the EPM memory module - a simple plug in chip that stores all the drive settings. The EPM module can be programmed off-line and the settings transferred from drive to drive in seconds. In the unlikely event that a drive fails, the EPM guarantees you minimum downtime.
3. FAQ

Q: What is your payment ?
A: Our payment is by T/T. Western Union. and Money.

Q: Is there a discount on the price of your product?
A: It depends the quantity of order.

Q:Is same quality between the sample and big order?
A:Our products are always as good as the samples we send, I can promise there will be no debasement of quality.

Q:Is the price for FOB?
A:Yes.

Q: How much is your minimum order quantity?
A: one pcs or unit.
4. Keywords:
AC frequency inverter, Variable frequency drive, AC drives
Variable Frequency Drive / Variable Speed Drive / frequency converter / AC converter
Frequency Inverter / AC Driver / AC Drives / AC Motor Drives / VFD, VSD / transistorized drives

5. Additional info.
(1). More than 20 years-- manufacture of frequency inverter.
(2). More than 10 years-- experience in OEM items
(3). More than 60 countries-- exported
(4). More than 70 R&D team-- OEM, ODM accepted
(5). More than 10,000 pcs production capacity per month
(6). Certification-- CE, ISO9000, ISO14001, OHSAS18000
(7). Service-- Stand on customer's position to solve problem, reply within 24 hours
