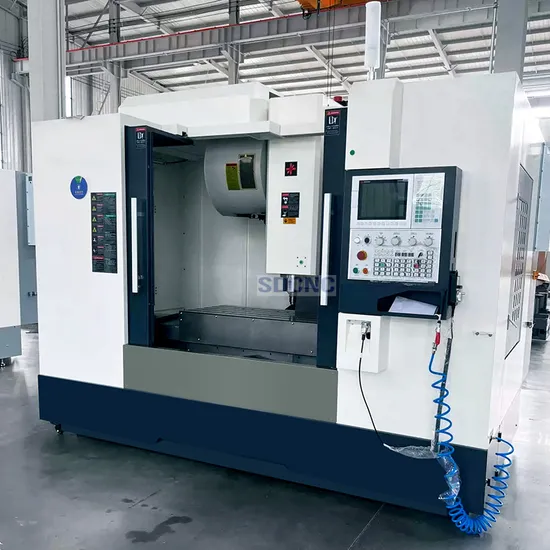

Vmc1060 CNC Vertical Metal-Cutting high Precision Machining Center
| US$24,500.00-26,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC1060
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Main Motor Power
11kw
Spindle Speed Range
8000rpm
Three-Axis Travel (X*Y*Z)
1000*600*600
CNC or Not
CNC
Transport Package
Wood Packaging
Specification
3400*2500*2960
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
340.00cm * 250.00cm * 296.00cm
Package Gross Weight
6900.000kg
Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like
milling ,drilling ,tapping ,boring ,etc. Product Parameters
Product main technical parameters:
| Specification | Units | VMC1160 |
| Table size | mm | 1200*600 |
| X axis travel | mm | 1100 |
| Y axis travel | mm | 600 |
| Z axis travel | mm | 600 |
| Max. table load | kg | 1000 |
| T slot(number-width*pitch) | - | 5-18*100 |
| Max. spindle speed | rpm | 8000 |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 11 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-8000 |
| Guide rail type | - | Linear rail |
| Distance from spindle axis to column surface | mm | 650 |
| Distance between spindle nose and table surface | mm | 100-700 |
| Positioning accuracy | mm | ±0.0075 |
| Repeat positioning accuracy | mm | ±0.005 |
| Tool magazine | - | Arm 24 |
| Max. tool diameter | mm | 78/120 |
| Max. tool weight | kg | 8 |
| Machine weight | kg | 6800 |
| Overall dimension(L*W*H) | mm | 3400*2500*2960 |
