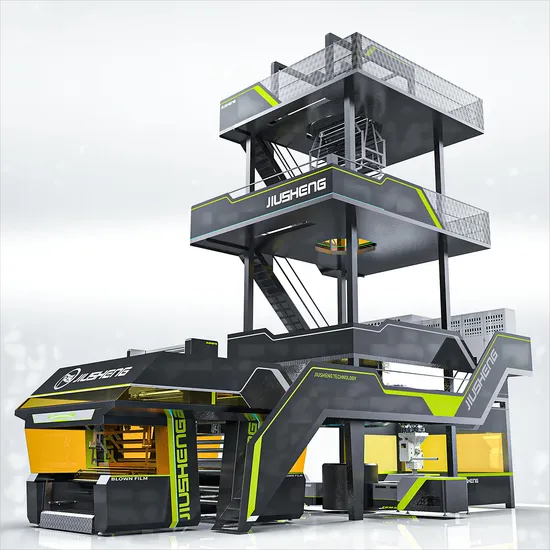

Seven-Layer Plastic Machinery PE Film Blowing Extruder Machine for 1800mm
| US$160,000.00-280,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JS-7-1800
Type
PE Film Blowing Machine
Raw Material
LDPE/LLDPE/Mlldpe/EVA and Mixing
Maximum Folding Width of Film
1600mm
Screw Diameter
65mm
Automation
Automatic
Computerized
Computerized
Machine Weight
20t
Certification
Patent Certificate
Product Name
7-Layer Protective Film Blowing Machine
Model No.
Js-7-1600
Brand
Jiusheng
Die Head Diameter
450mm
Air Ring Diameter
1480mm
Main Motor Power
37kw*2 75kw*1
Whether to Support Customization
Support Custom
Keyword
Film Blowing Machine
Delivery Time
1-3 Month
Payment
T/T,L/C
Specification
1 SET
Trademark
JIUSHENG
Origin
China
HS Code
8477301000
Production Capacity
100PCS/Year
Product Description
Jiusheng recommends blown film machine
↓ ↓ ↓
main parameter
| Model | SJBHM-65/75/65-1800 | SJBHM-65/85/65-2000 |
| Suitable material | LDPE/LLDPE/mLLDPE/EVA and Mixing | |
| Film layer | 7 layers | |
| Film thickness | 0.02 - 0.15mm | |
| Max film width | 1600mm | 1800mm |
| Max output | 300-400kg/h | 400-500kg/h |
| Screw diameter | φ65/φ75/φ65 | φ65/φ85/φ65 |
| Screw L/D ratio | 33:1 | 33:1 |
| Die head diameter | 400mm | 450mm |
| Air ring Diameter | 1480mm | 1480mm |
| Main motor power | 37/55/37kw | 37/75/37kw |
| IBC system | P+F probe and IBC system | |
| EPC system | EPC auto edge position control system | |
| Screen changer | Non-disassemble manual screen changer | |
| Winding method | Automatic back to back surface friction winder | |
| Tension control system | Auto | |
| Overall Dimension (L*W*H) | 12500*7000*11500mm | 12500*7000*12500mm |
Process Flow Diagram
Automatic ABC(IBC)3-Layers Co-extrusion Center Gap Winding System Film Blowing machine
Jiusheng Product Album
Our Equipment in Factory
The Patent Certificate We Obtained
Main Product Series
1.barrier film
2.composite base film
3.protective film
4.self-adhesive film
Production Site
Spare Parts and Service
Q&A
Q1: How about after-sales service? How long is the machine warranty? A1: We guarantee 1 year after-sale service once you received our machine, you can call us or send us any questions about the machine.
Q2: How long is your delivery time? A2: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q3: How long can your machine work continuously? A3: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q4: Does your factory need agents? What are the thresholds? A4: We need agents, welcome to inquire for more details.
Q5: Where is your factory? How can I visit there? A5: We are located in Wuhan City, Hubei Province.We have convenient transportation and we are willing to show u around our factory.
