Center Tube Rolling Automatic Roll Welding and Forming Machine for Mesh Powerful Patented Technology Source Factory

Product Description

PLM-GH-660

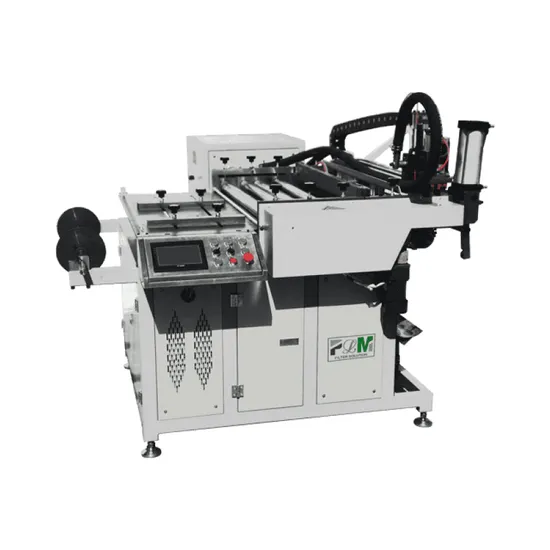

Automatic Roll Welding and Forming Machine for mesh

Production Capacity	2-3 pcs/min
Max. Mesh Diameter	660 mm
Max. Mesh Length	120-400mm
Motor Power	35 kW
M/C Weight	1025 kg
Power Supply	380/50 V/HZ

1.Q:Are you a manufacture or trading company?
A: We are a manufacture.

2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Anping City of China. You can fly to Beijing or Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: Free samples will be sent to you by express delivery.

4.Q:How does your factory do regarding quality control?
A: We have 10 years experience. "Quality is priority." we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 certificate.
Any questions or inquiry, pls contact us without hesitaton, hope to cooperate with you !

In the process of making filters, the machines involved include the center tube manufacturing machine, the inner and outer iron mesh manufacturing machine, the inner and outer mesh winding machine, and the inner and outer mesh forming machine. These machines play a key role in the filter manufacturing process. Through modern manufacturing equipment and technology, they can improve production efficiency, ensure product quality, and meet the market demand for high-performance filters.
Center tube manufacturing machine:
Effect:
It is used to manufacture the center tube of the filter, which is one of the core components of the filter structure and is made of metal material.
Advantages:
Precision manufacturing: The center tube manufacturing machine can accurately manufacture the center tube according to the design requirements, ensuring that its size and shape meet the design requirements of the filter.
Efficient production: The automated center tube manufacturing machine can efficiently produce a large number of center tubes, reduce manual operations, and improve production efficiency.
Stable quality: Through machine manufacturing, the quality stability and consistency of the center tube can be guaranteed, reducing differences caused by human factors.
Inside and outside iron mesh manufacturing machine:
Effect:
Used to make the inner and outer iron mesh of the filter, these meshes are usually used to support and fix the filter material (such as filter paper or filter cloth).
Advantages:
Customized production: The inner and outer iron mesh manufacturing machine can customize the size, shape and mesh structure of the iron mesh according to the specific design requirements of the filter.
High strength and durability: The iron mesh is manufactured by machine, which can ensure the uniformity and strength of the mesh, increase the durability and stability of the filter.
Production efficiency: The automated iron mesh manufacturing machine can quickly produce a large number of iron meshes, improve production efficiency and reduce production costs.
Inner and outer net winder:
Effect:
Used to roll the manufactured inner and outer nets into a roll form suitable for the filter size, which is convenient for subsequent installation and use.
Advantages:
Winding consistency: The winder can ensure the tightness and consistency of the inner and outer nets during the winding process, avoiding the problem of looseness or overtightness.
Space saving: After the iron net is rolled into a roll form, it is easy to store and transport, saving space and reducing logistics costs.
Easy to operate: Automatic or semi-automatic winders are easy to operate and reduce the labor intensity of operators.
Inner and outer net forming machine (welding or pressing):
Effect:
Used to connect the inner and outer nets to other filter components (such as the center tube or end cap), usually fixed by welding or pressing.
Advantages:
Strong connection: The forming machine can ensure the firm connection between the inner and outer nets and other filter components, and enhance the stability and durability of the overall structure.
Production efficiency: The automated forming machine can quickly complete the welding or pressing process, improve production efficiency, and reduce production cycles.
Quality control: Through mechanized welding or pressing, the welding quality and connection strength can be controlled, reducing quality problems caused by manual operation.
